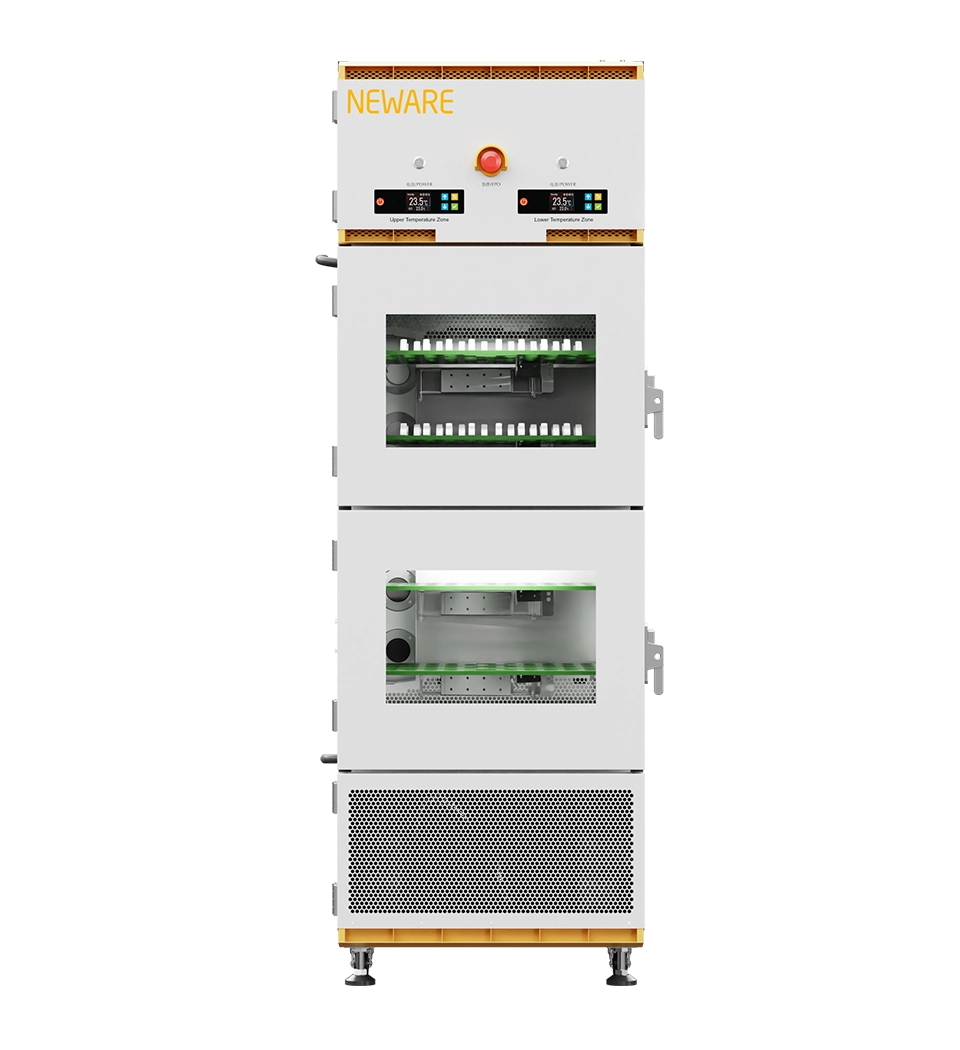

All-in-One Battery Testing System

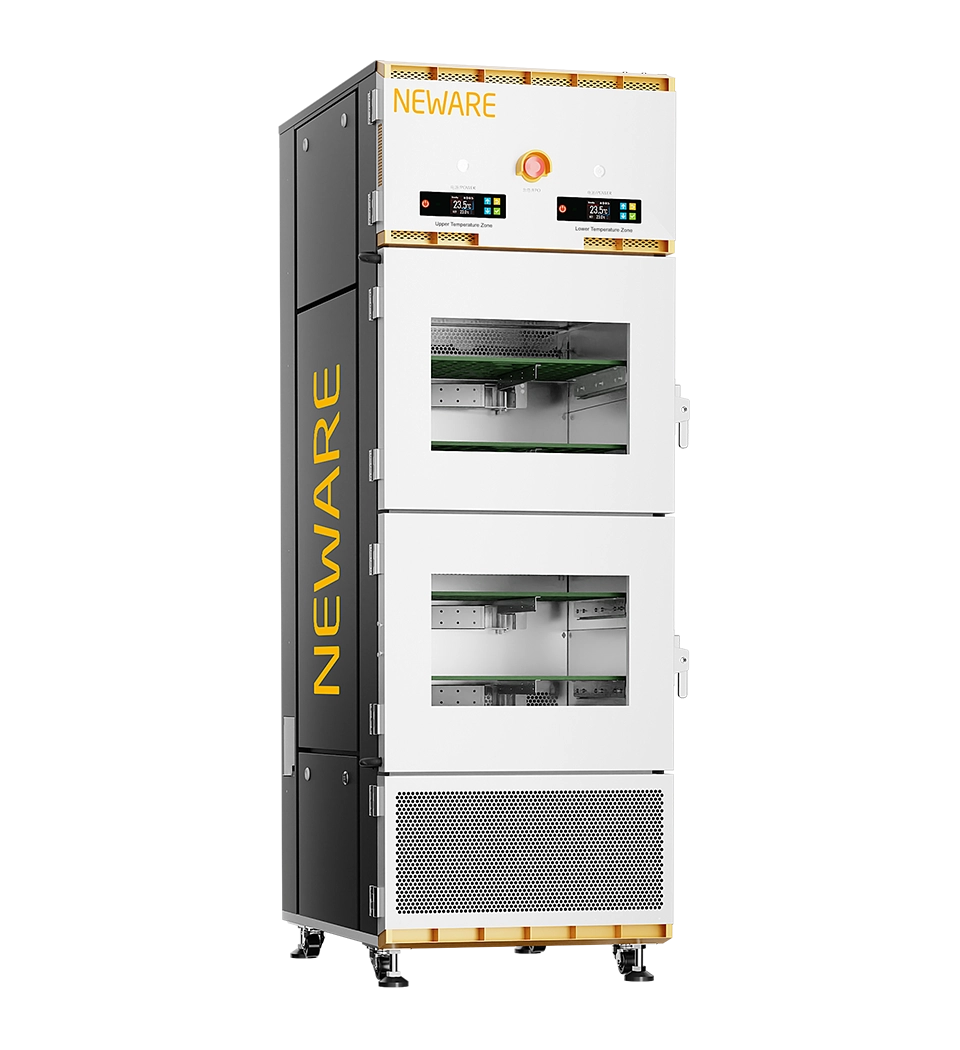

WHW-100L-2-160CH NEWARE Battery Testing Solutions

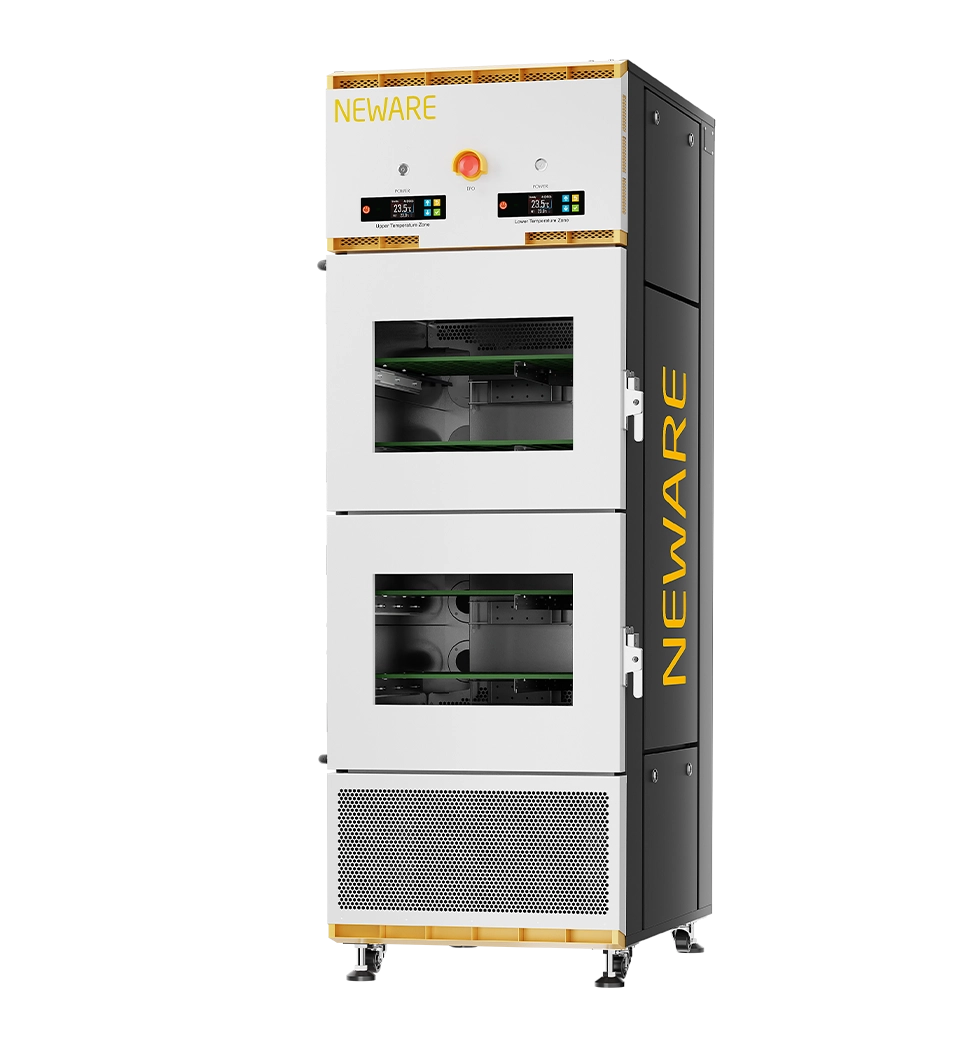

WHW-100L-2-160CH

Dual-Temperature Zones
All-in-One Testing System

NEWARE-Dual-Temperature Zones.All-in-One Testing System.Button battery tester,coin battery tester,With precise current and temperature control,160 testing channels

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Number of Channels：160CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃）

All-in-one solution: Coin cell testing & dual-temperature control.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3
5V / 10V10mA	5μA ~ 1mA	1mA ~ 5mA	5mA ~ 10mA
5V / 10V20mA	5μA ~ 1mA	1mA ~ 10mA	10mA ~ 20mA
5V / 10V50mA	5μA ~ 1mA	1mA ~ 25mA	25mA ~ 50mA

*Other models can be customized according to voltage and current requirements.

WHW-200L-160CH-B NEWARE Battery Testing Solutions

WHW-200L-160CH-B

Coin Cell All-in-One Testing System

NEWARE All-in-One Testing System, for battery test. Test button batteries, coin cells, and super capacitors with precision. Ensure reliable performance with data storage, GITT analysis, and temperature control.

● Voltage & Current Accuracy：±0.01% F.S.

● Recording Frequency：100Hz

● Number of Channels：160CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)

Integrating charge-discharge and temperature testing into one.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V100mA	0.2μA ~ 0.1mA	0.1mA ~ 1mA	1mA ~ 10mA	10mA ~ 100mA

*Other models can be customized according to voltage and current requirements.

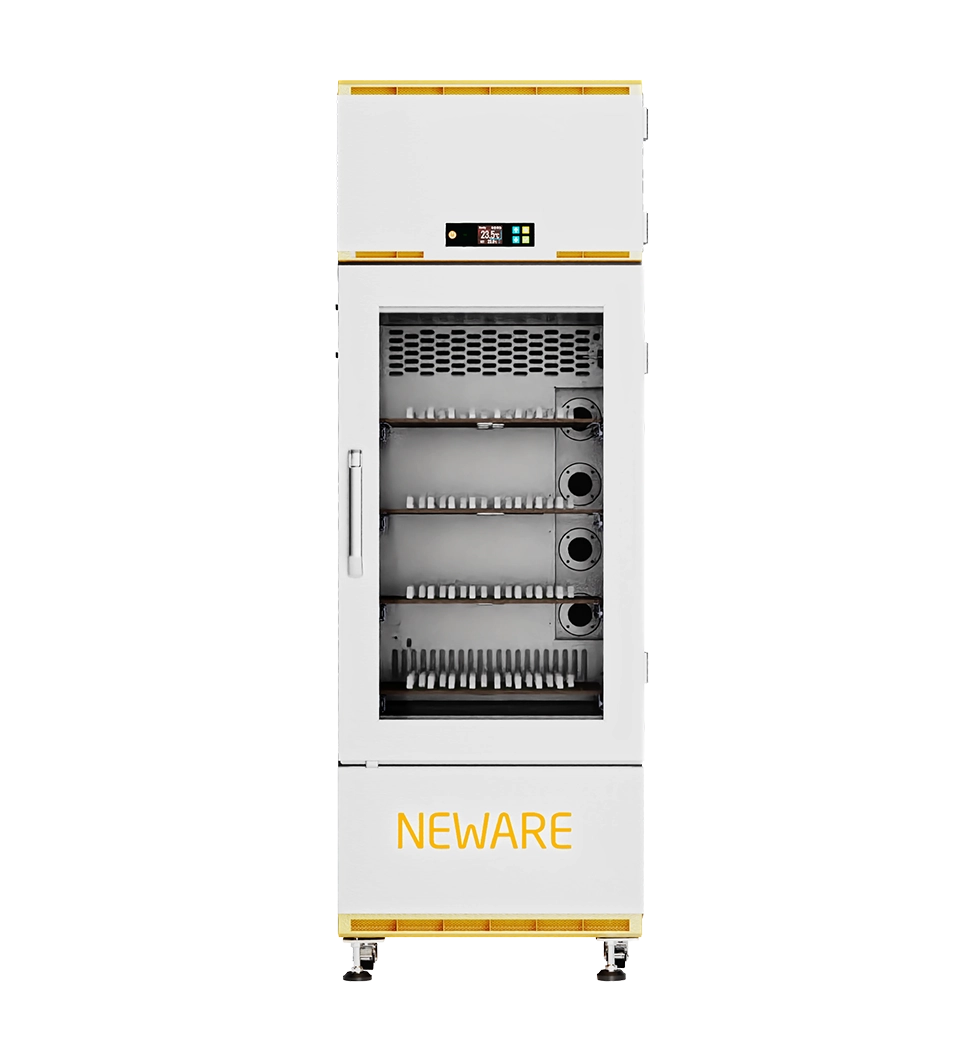

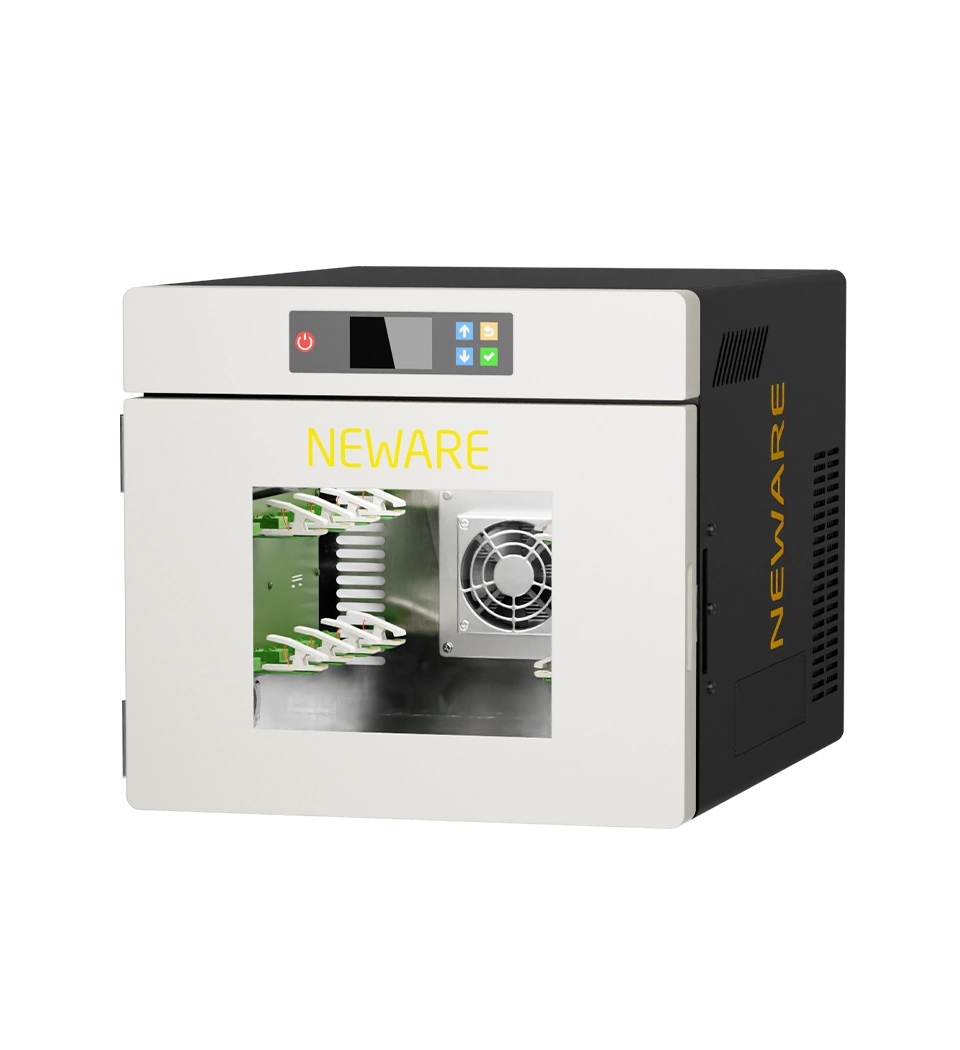

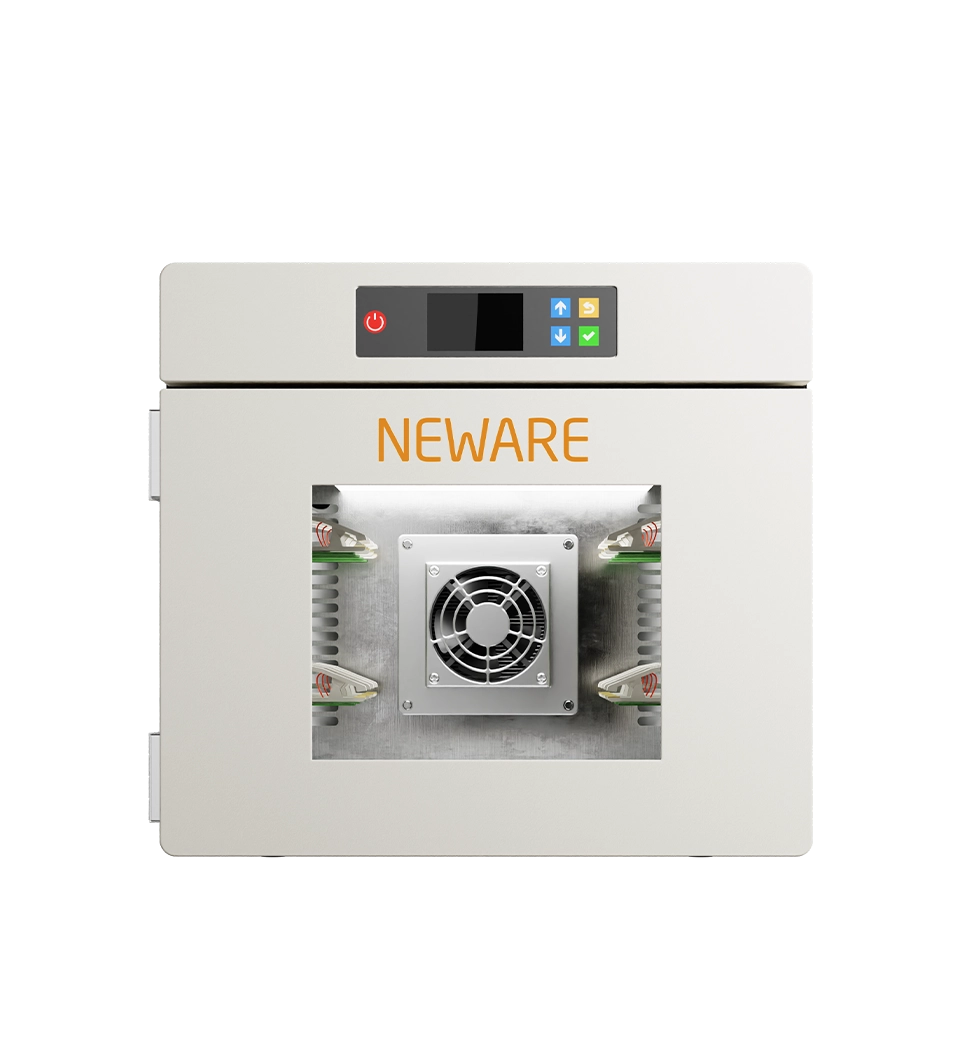

WHW-25L-16CH NEWARE Battery Testing Solutions

WHW-25L-16CH

Mini All-in-One Testing System

NEWARE Mini All-in-One battery tester. Test button batteries, analyze test data.With data storage, GITT analysis, and temperature control, achieve accurate battery testing.NEWARE battery testing equipment for data acquisition and analysis

● Voltage & Current Accuracy：±0.05% F.S.

● Sampling Time：100ms

● Number of Channels：16CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)

Integrating charge-discharge and temperature testing into one.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3
5V / 10V10mA	5μA ~ 1mA	1mA ~ 5mA	5mA ~ 10mA
5V / 10V20mA	5μA ~ 1mA	1mA ~ 10mA	10mA ~ 20mA
5V / 10V50mA	5μA ~ 1mA	1mA ~ 25mA	25mA ~ 50mA

*Other models can be customized according to voltage and current requirements.

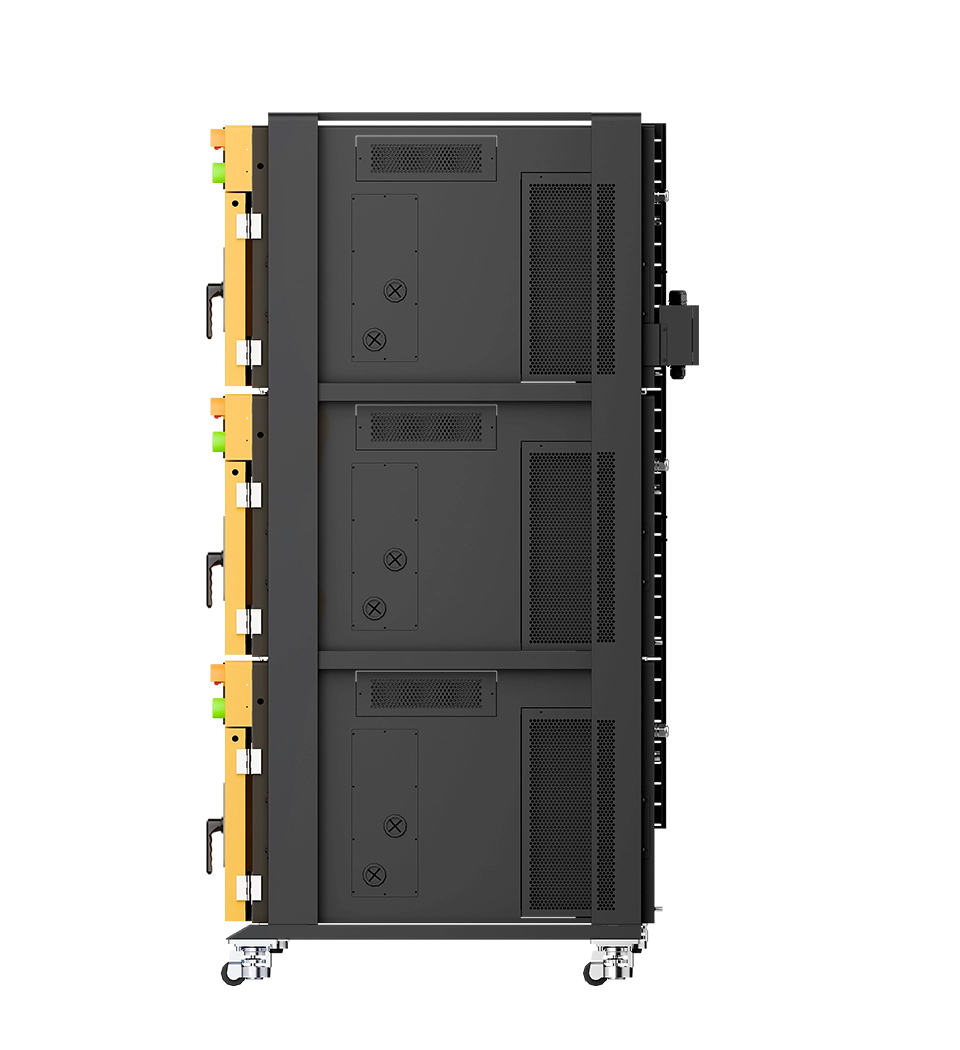

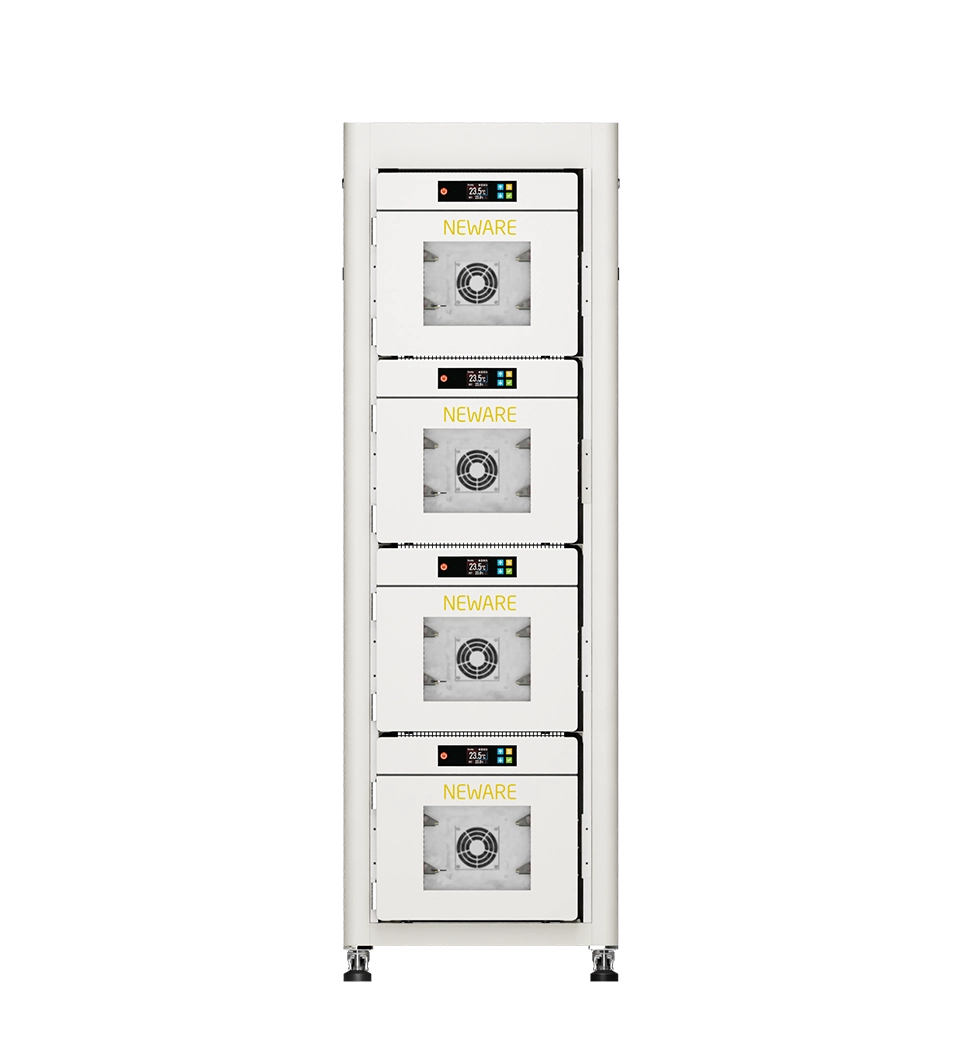

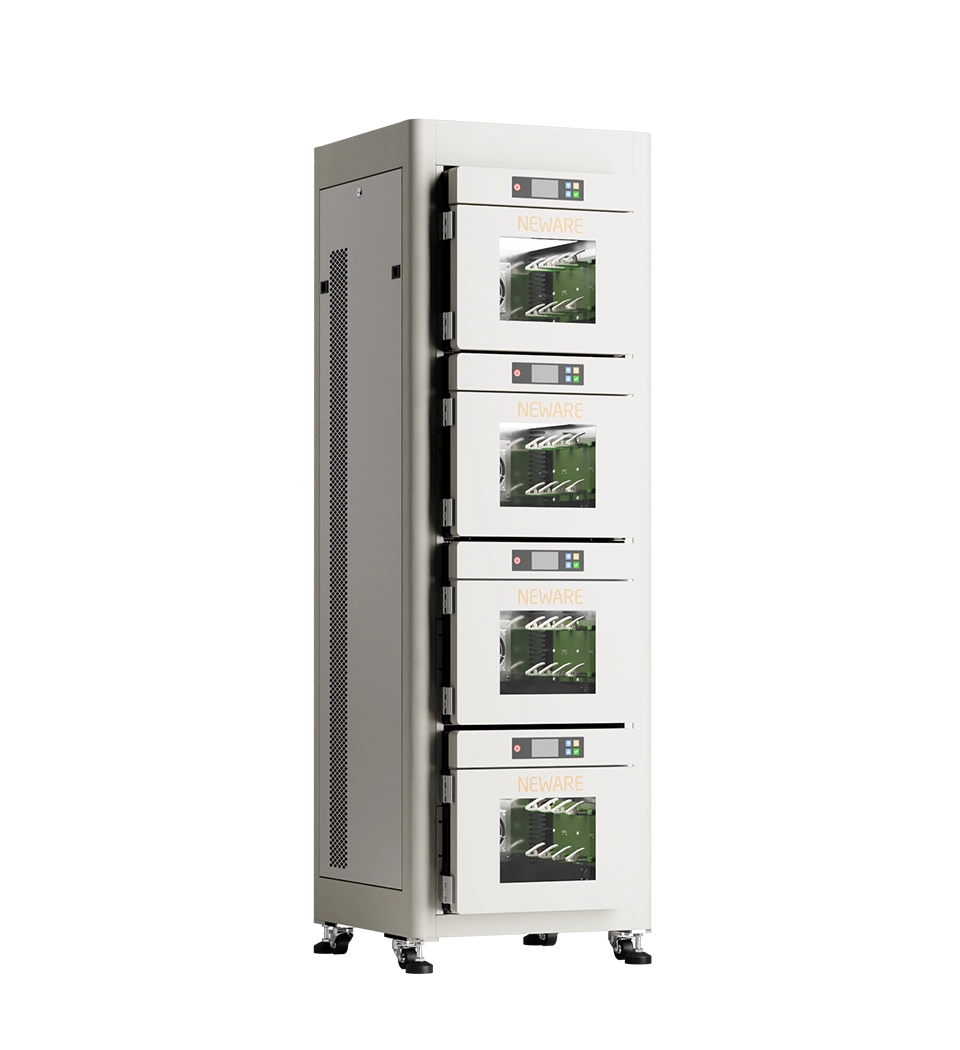

WHW-25L-16CH*4 NEWARE Battery Testing Solutions

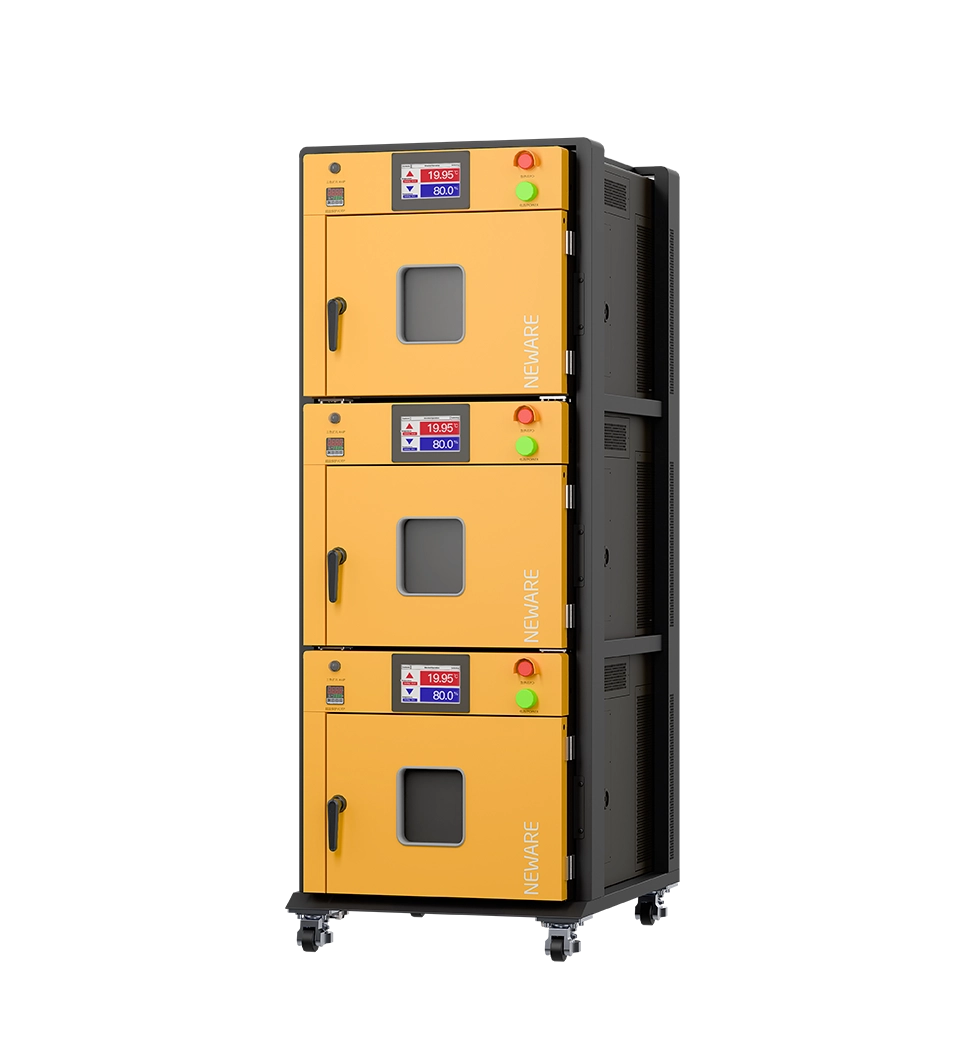

WHW-25L-16CH*4

4 Temperature Zone
All-in-One Testing System

NEWARE-4 Temperature Zone All-in-One Testing System,for button battery or coin battery to battery test,with GITT, current control, and temperature measurement.

● Voltage & Current Accuracy：±0.05% F.S.

● Sampling Time：100ms

● Number of Channels：64CH

● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)

● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)

● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃）

Integrating charge-discharge and temperature testing into one.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3
5V / 10V10mA	5μA ~ 1mA	1mA ~ 5mA	5mA ~ 10mA
5V / 10V20mA	5μA ~ 1mA	1mA ~ 10mA	10mA ~ 20mA
5V / 10V50mA	5μA ~ 1mA	1mA ~ 25mA	25mA ~ 50mA

*Other models can be customized according to voltage and current requirements.

WHW-500L-5V6A80CH-380V NEWARE Battery Testing Solutions

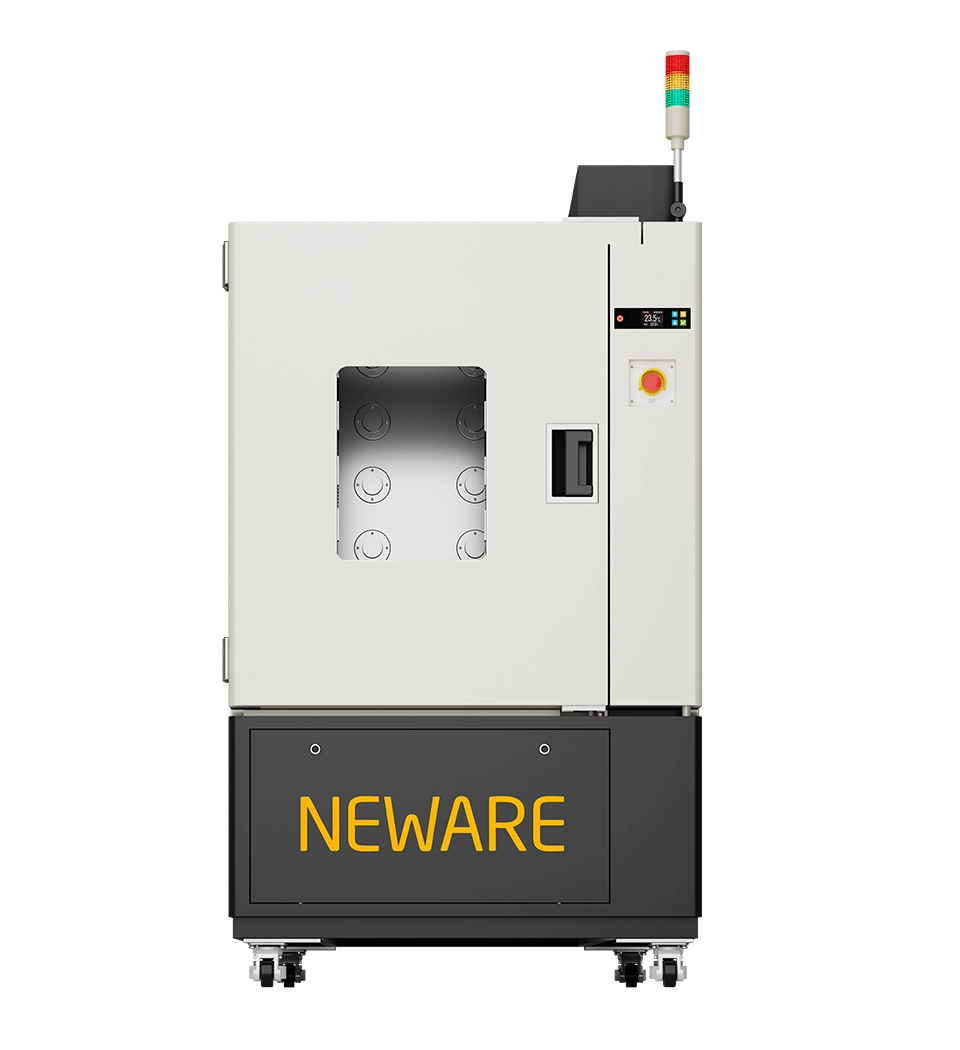

WHW-500L-5V6A80CH-380V

3C All-in-One Testing System

NEWARE all in one battery testers for button battery or 3C battery.Our battery tester with data storage,GITT test,supercapacitor testing, and temperature control.

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Number of Channels：80CH

● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)

● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)

● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)

Integrating charge-discharge and temperature testing into one.

Voltage & Current	Range 1	Range 2	Range 3
5V6A	0.5mA~0.1A	0.1A~3A	3A~6A
5V12A	5mA~1A	1A~6A	6A~12A

*Other models can be customized according to voltage and current requirements.

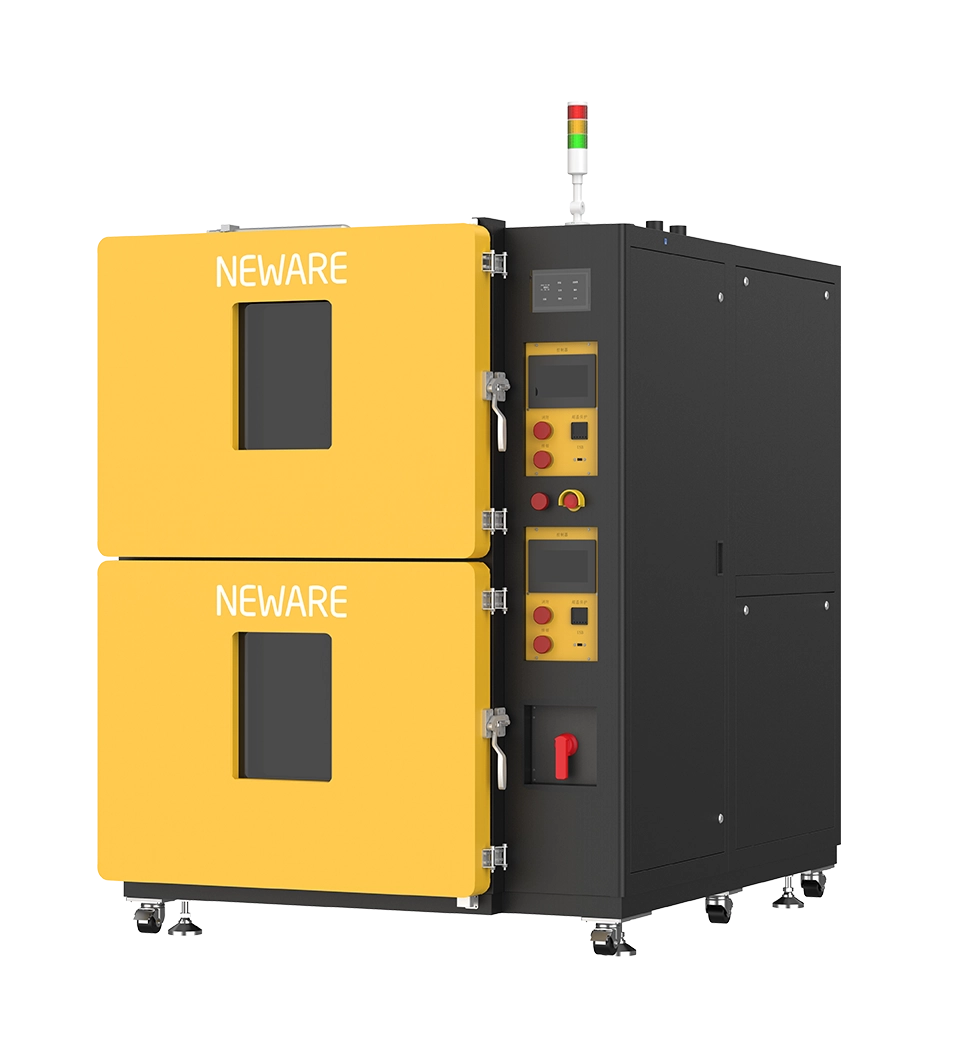

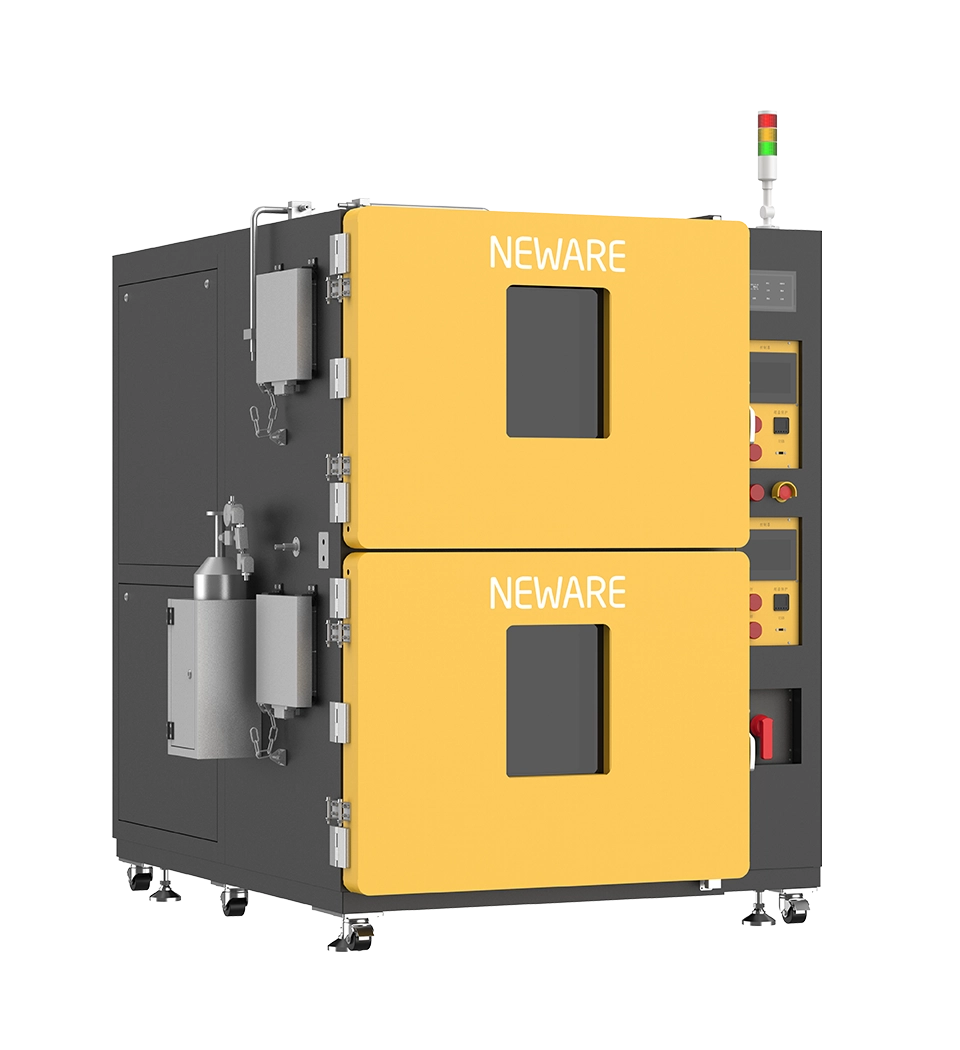

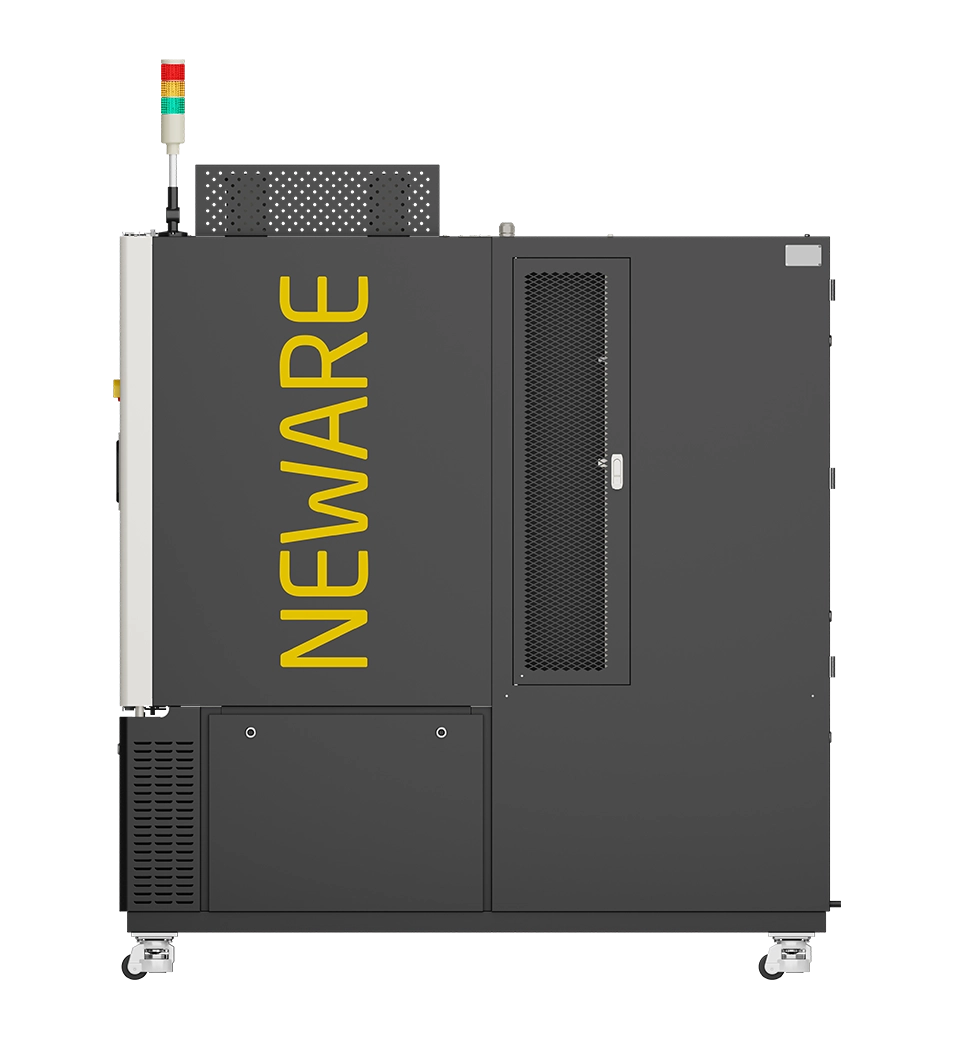

WGDW-380L-2-40BFC-5V600A8CH NEWARE Battery Testing Solutions

WGDW-380L-2-40BFC-5V600A8CH

Power Cell All-in-One Testing System

NEWARE Power Cell All-in-One Battery Tester is designed for car battery ( EV battery) and electric bicycle batterry. It features data storage, battery cycling, explosion-proof design,and temperature test chamber

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Temperature Fluctuation：≤1.8℉(1℃)

● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)

● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)

● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)

Power cell testing, explosion-proof high and low-temperature test chamber.

Nominal Specification	380L×2
Internal Size	39.4"×19.7”×29.5“ (1000mm×500mm×750mm)
External Size	63.0“×70.9”×80.7“ (1600mm×1800mm×2050mm)
Net Weight	900kg
Voltage & Current	5V600A
Number of Channels	4CH×2

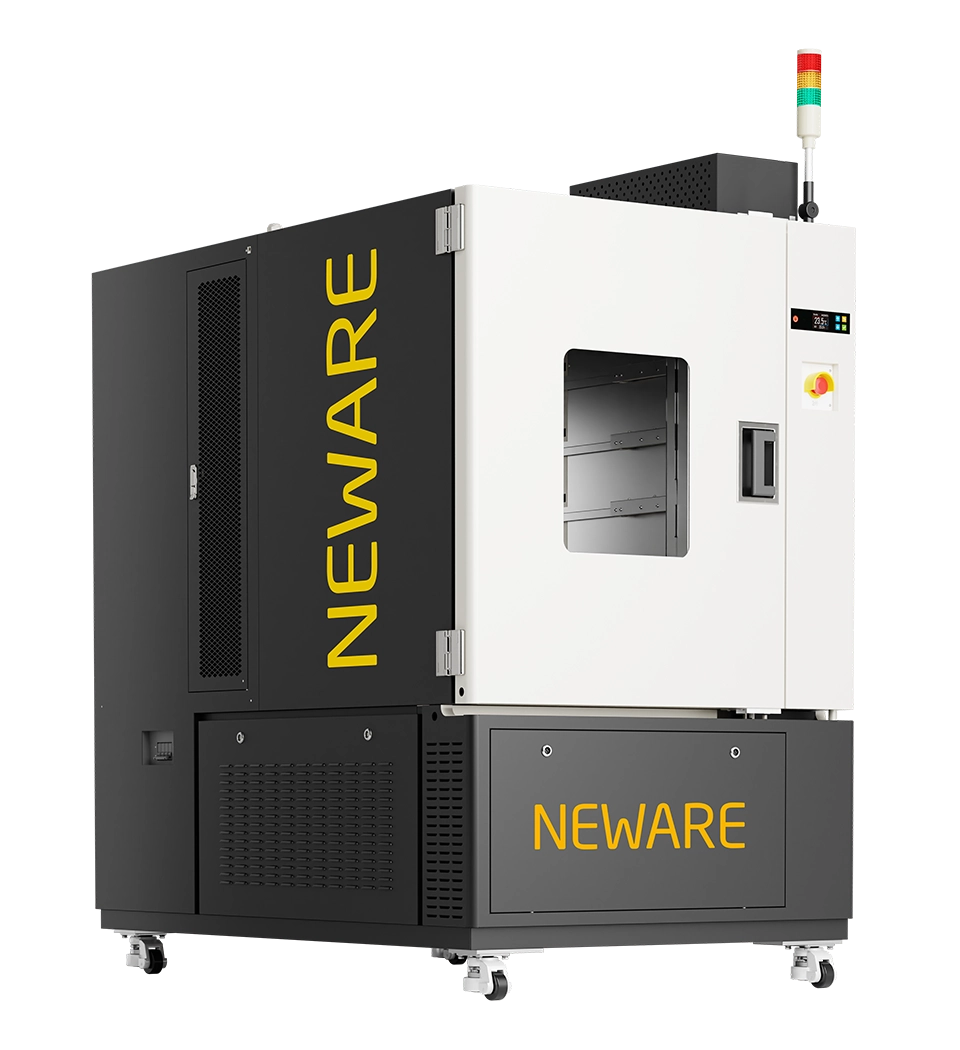

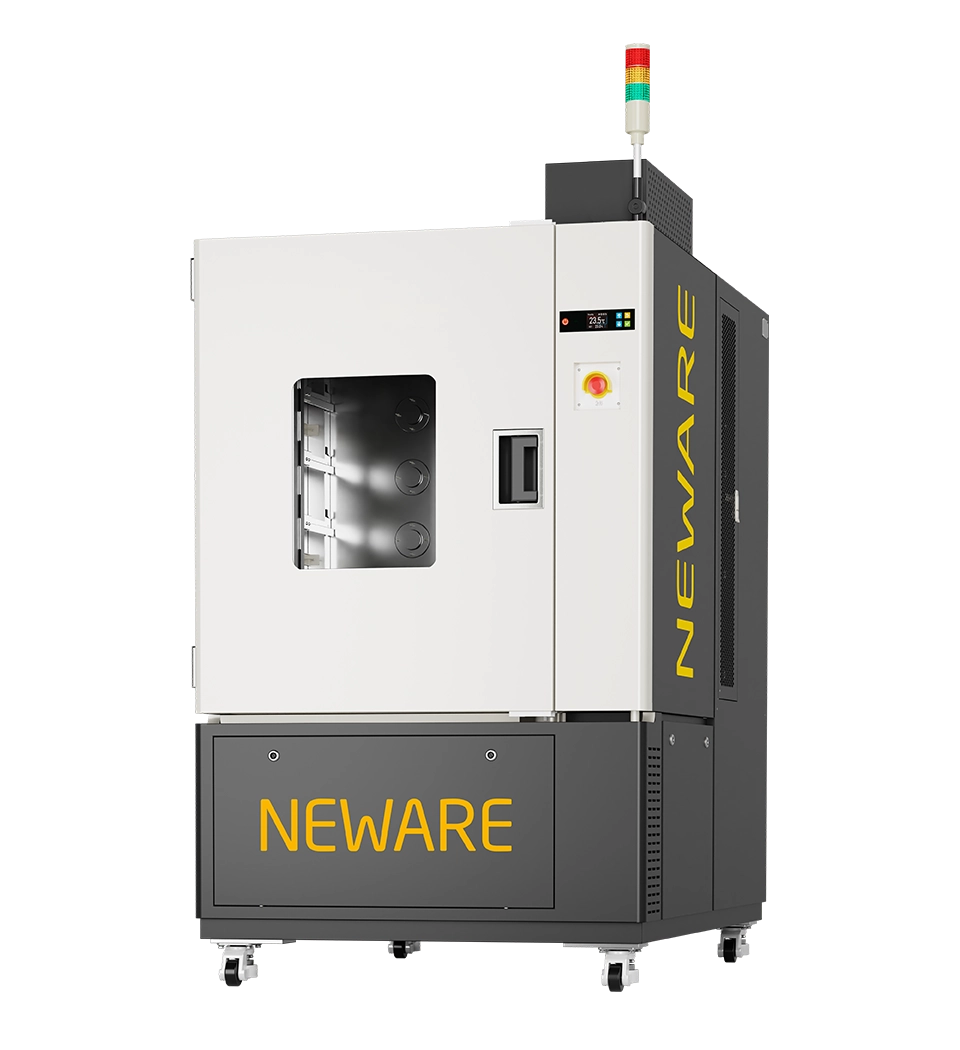

WGDW-400L-40BC-5V30A96CH NEWARE Battery Testing Solutions

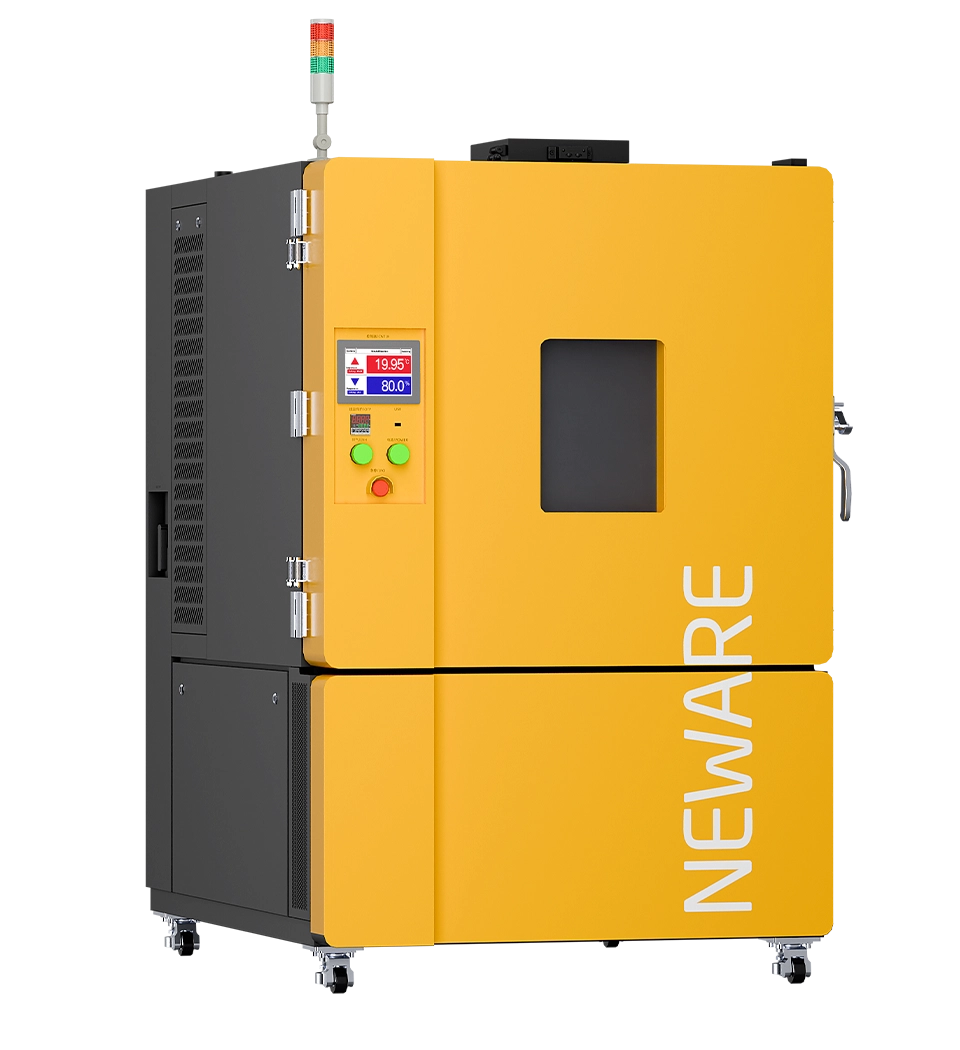

WGDW-400L-40BC-5V30A96CH

Low and High Temperature 3C All-in-One Testing System

NEWARE-WGDW-400L-40BC-5V30A96CH integrated battery testing equipment, temperature control box, explosion-proof box, battery testing equipment with LCD touch control.

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)

● Temperature Fluctuation：±0.9℉(±0.5℃)

● Heating Efficiency：68℉ → 302℉ ≤40min(20℃ → 150℃)

● Cooling Efficiency：68℉ → -40℉≤60min(20℃→-40℃)

3C battery cell testing, explosion-proof high and low-temperature test chamber.

Nominal Specification	400L
Internal Size (W×D×H)	31.9"×19.7"×39.4" (810mm×500mm×1000mm)
External Size (W×D×H)	56.0"×70.9"×78.7" (1420mm×1800mm×2000mm)
Net Weight	700kg
Voltage & Current	5V30A
Number of Channels	96CH

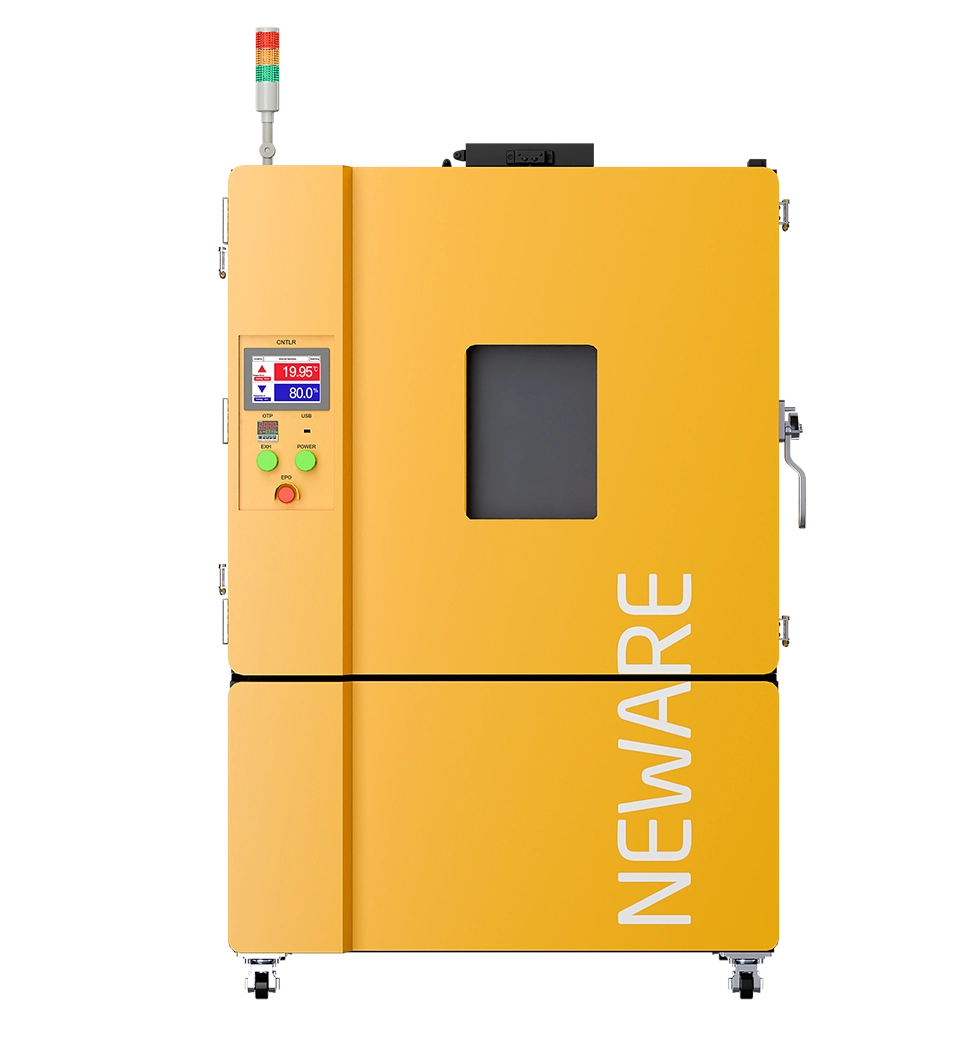

WGDW-50L-40-5V30A16CH NEWARE Battery Testing Solutions

WGDW-50L-40-5V30A16CH

Low and High Temperature 3C All-in-One Testing System

NEWARE low and high temperature 3C all-in-one testing system.This equipment is used for high-performance testing and temperature control of batteries.

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：10Hz

● Temperature Range & Deviation：-40℉ ~ 212℉±3.6℉(-40℃ ~ 100℃±2.0℃)

● Temperature Fluctuation：±0.9℉(±0.5℃)

● Heating Efficiency：68℉ → 212℉ ≤40min(20℃ → 100℃)

● Cooling Efficiency：68℉ → -40℉≤60min(20℃→-40℃)

3C battery testing, high and low-temperature test chamber.

Nominal Specification	50L
Internal Size (W×D×H)	17.7"×13.8"×12.6" (450mm×350mm×320mm)
External Size (W×D×H)	28.0"×39.4"×27.8" (710mm×1000mm×700mm)
Net Weight	120kg
Voltage & Current	5V30A
Number of Channels	16CH

Powerful programmability.
Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

DBC Configuration

CC & CV charge/discharge test

500ms pulse width

Segmented recording

Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

Testing the performance of the battery under fast changes in current/power.

Allow to set up to 3 segment recording conditions per step, including voltage, current and time.
