CE-6000 Series

CE-6000 Cell Testing System NEWARE Battery Testing Solutions

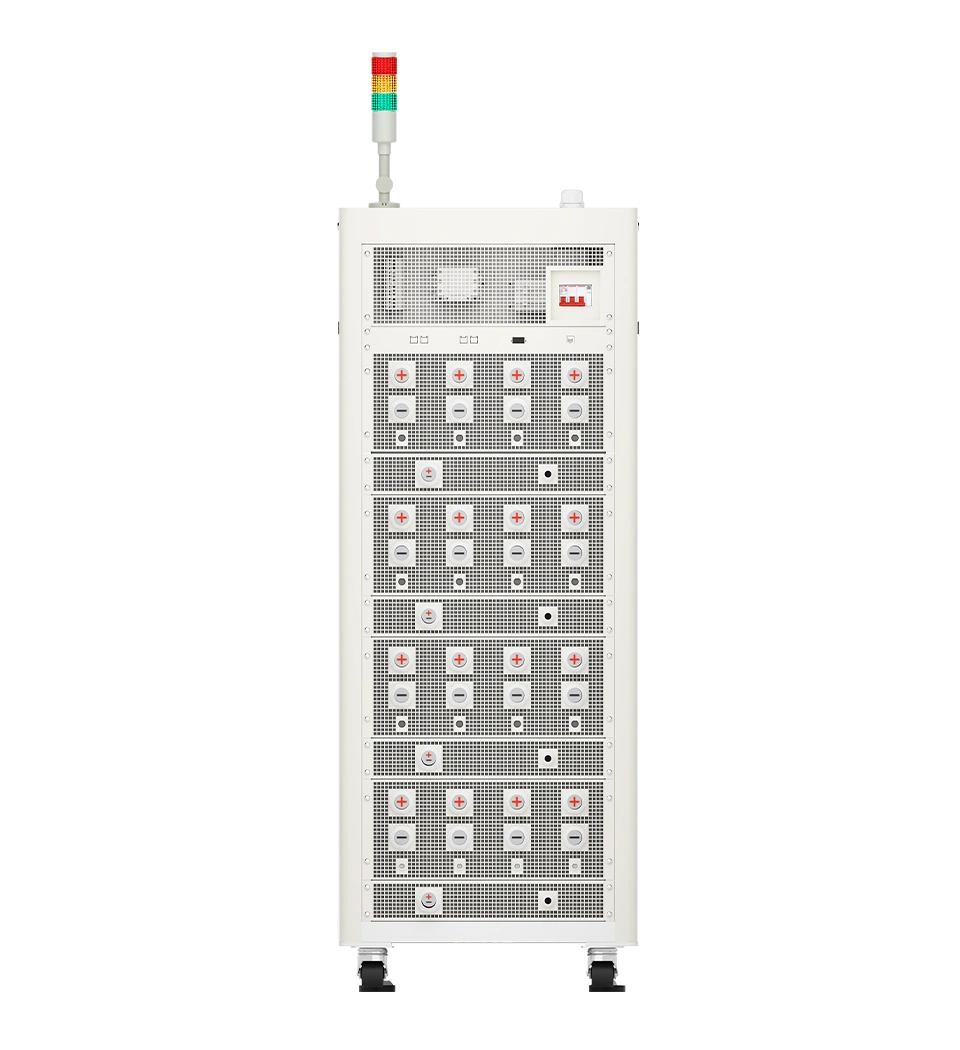

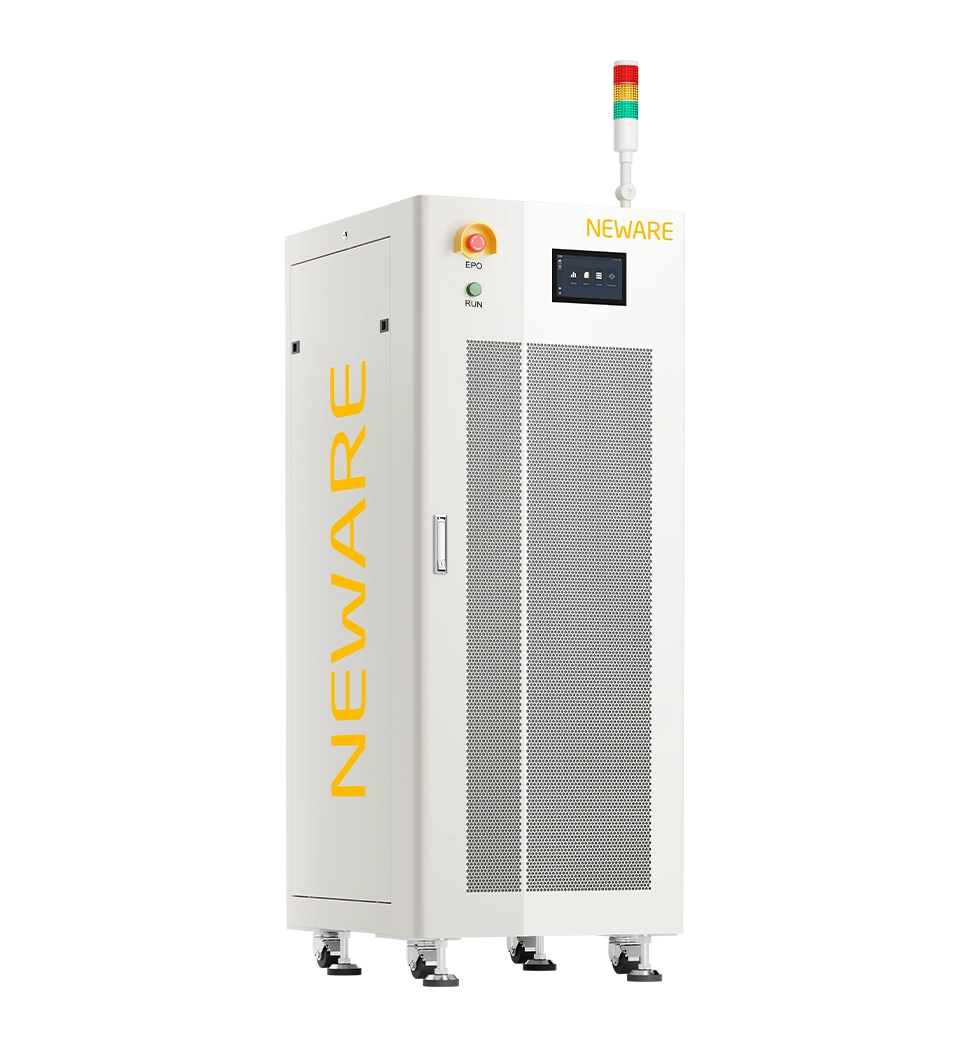

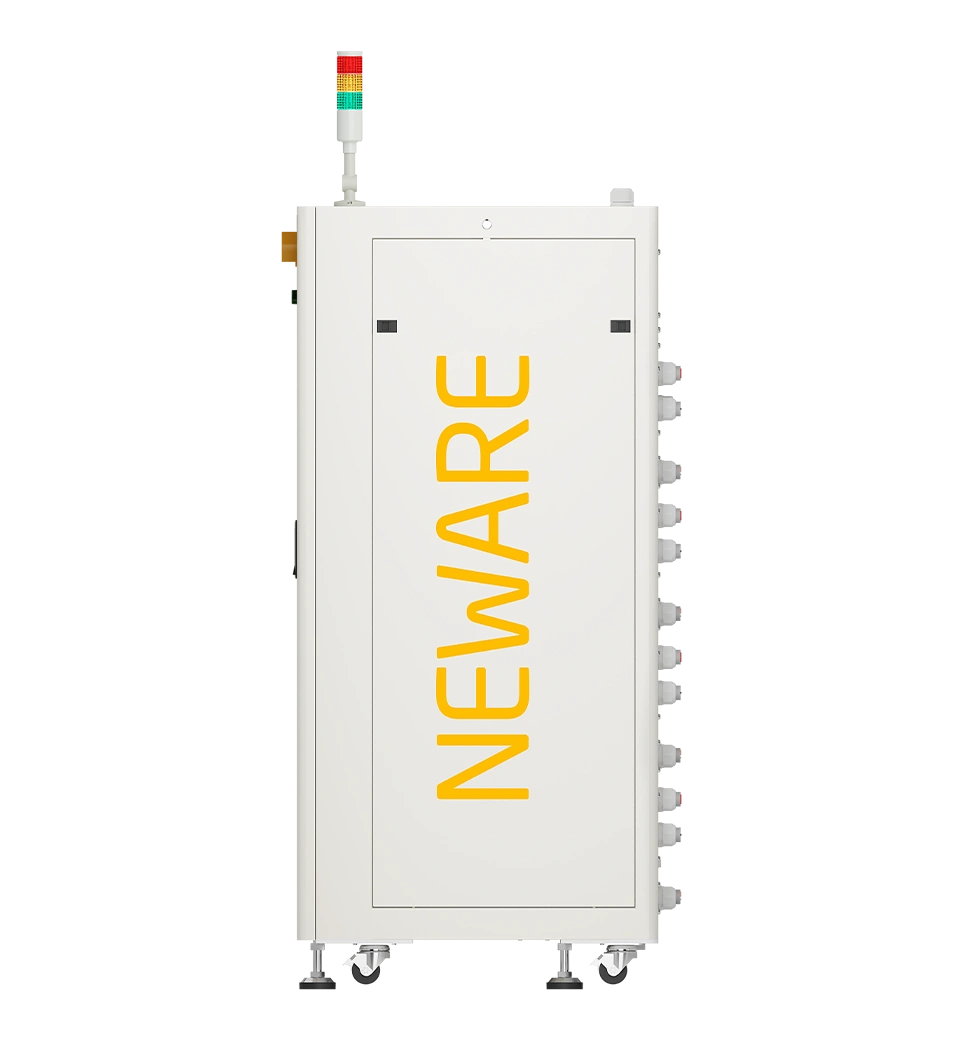

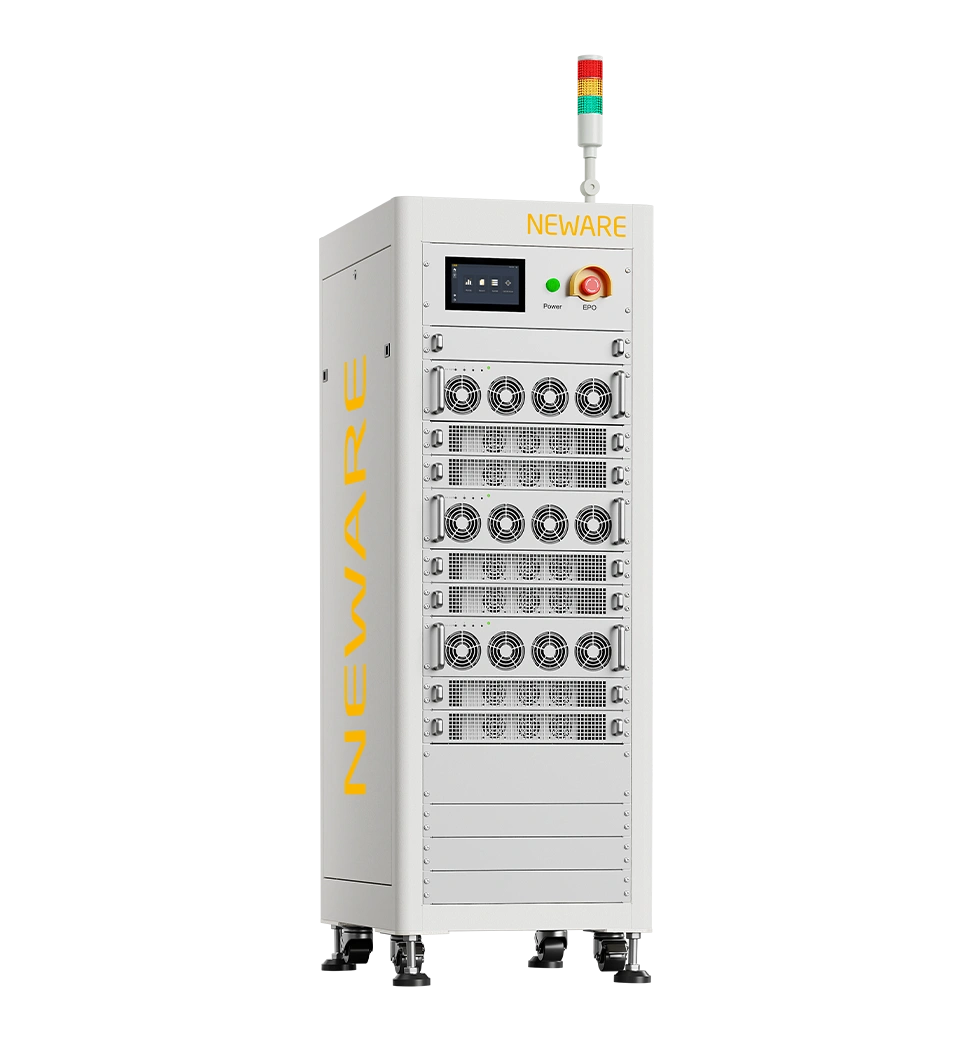

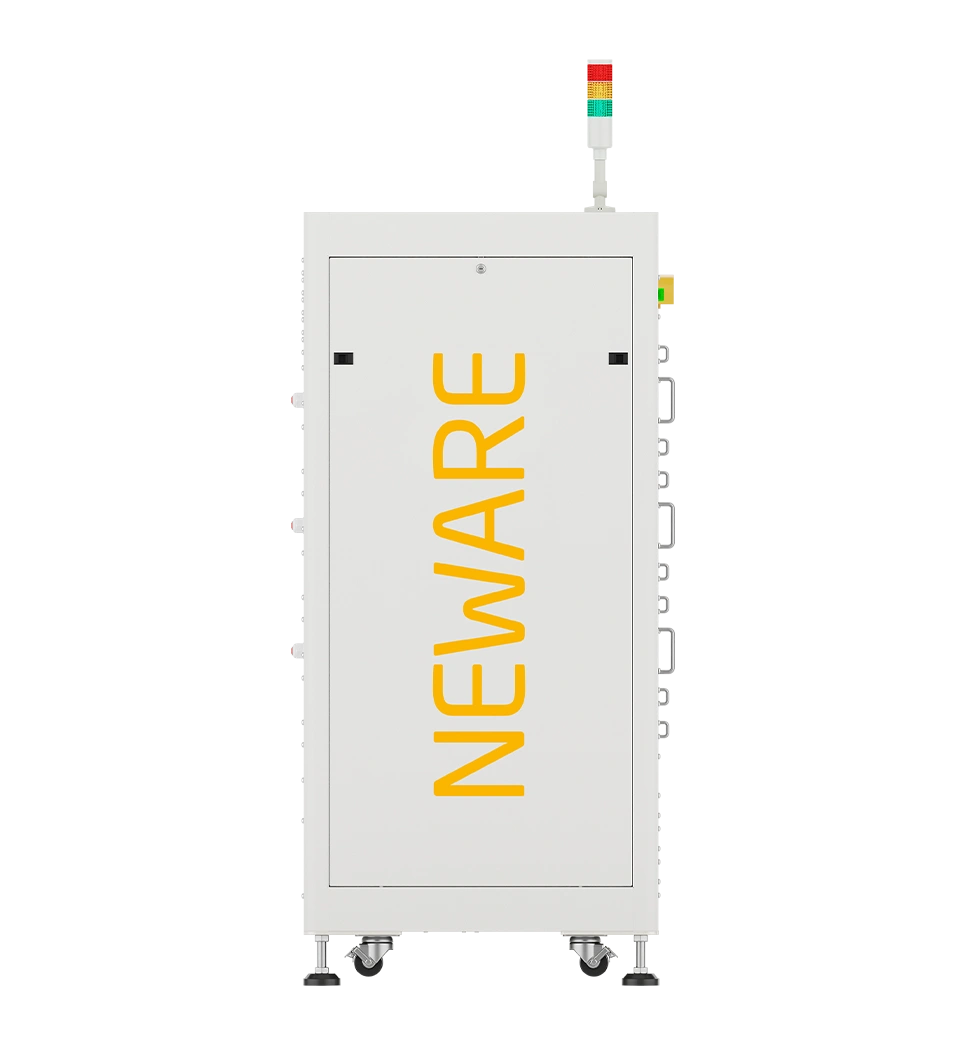

CE-6000 Cell Testing System

NEWARE CE-6000: Specialized battery tester for SOC, DOO, EV battery, solar panel battery, electric car battery. Reliable test equipment for power cells.

● Voltage & Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Current Conversion Time：≤6ms

● Current Response Time：≤3ms

● Minimum Pulse Width：100ms

● Feedback Efficiency (Max) ：75%

For Cell Testing in uncompromising quality.

Voltage	Current
5V / 6V	75A	150A	300A	600A	1200A	1500	2000

*Other models can be customized according to voltage and current requirements.

CE-6000 Module Testing System NEWARE Battery Testing Solutions

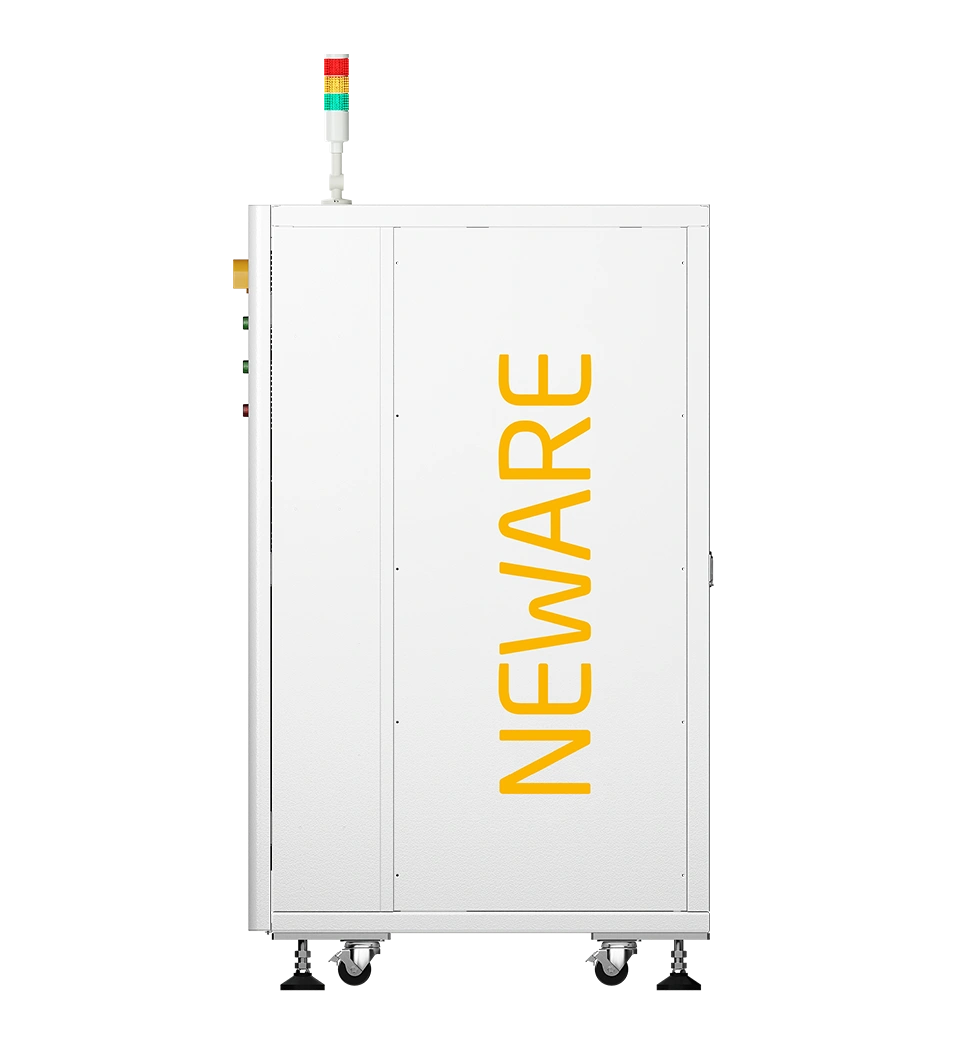

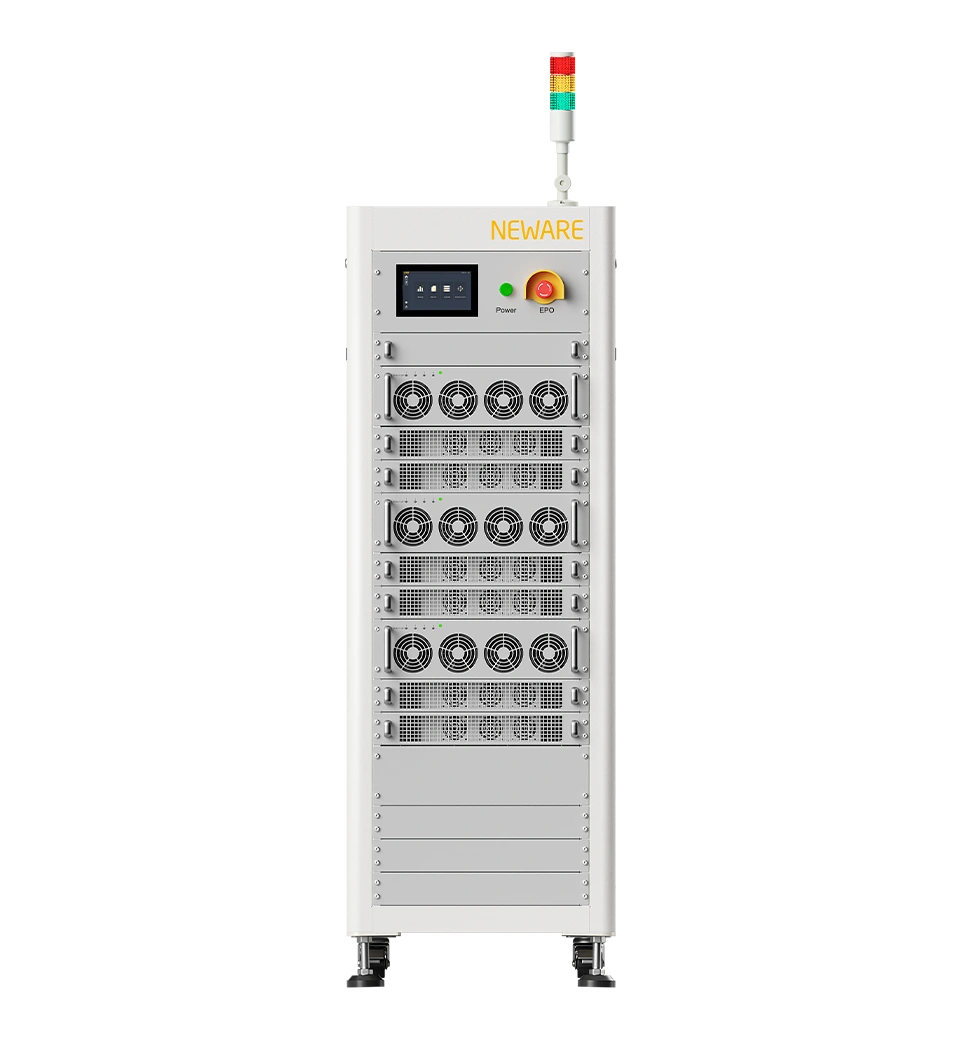

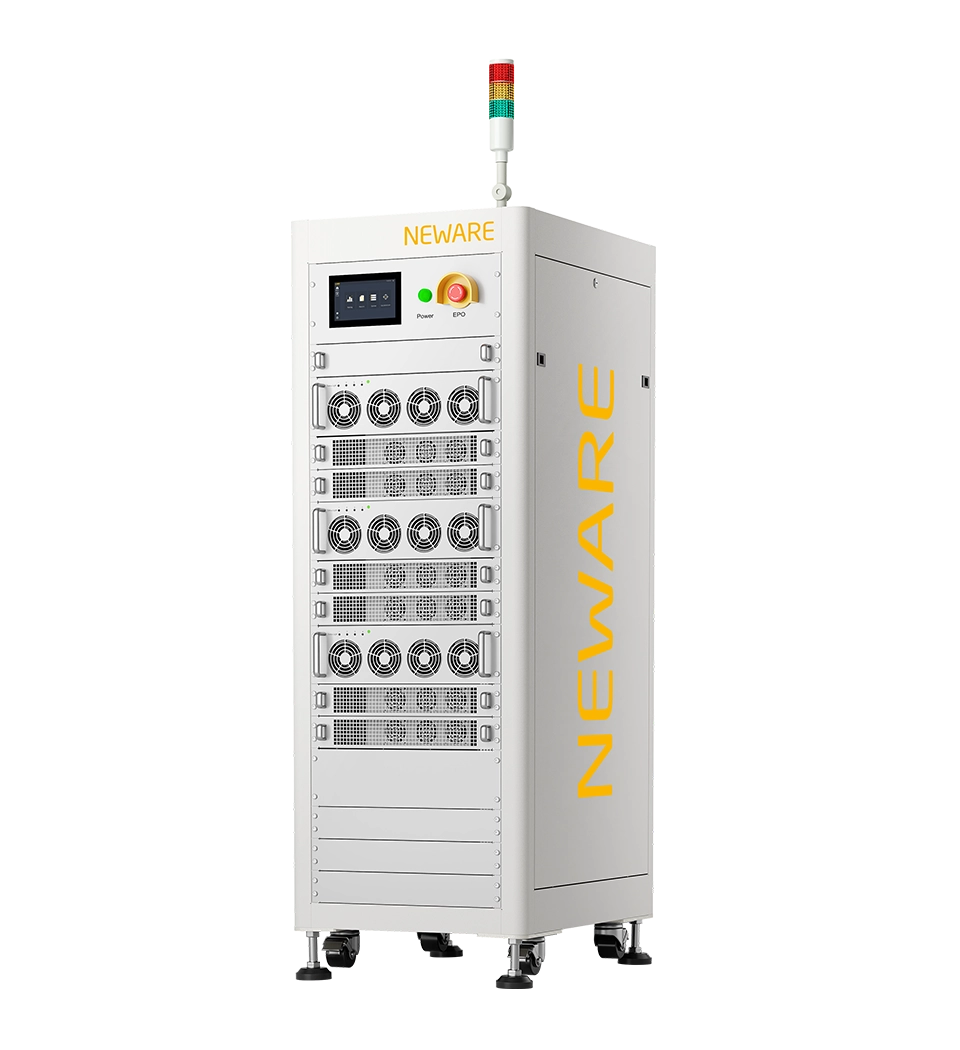

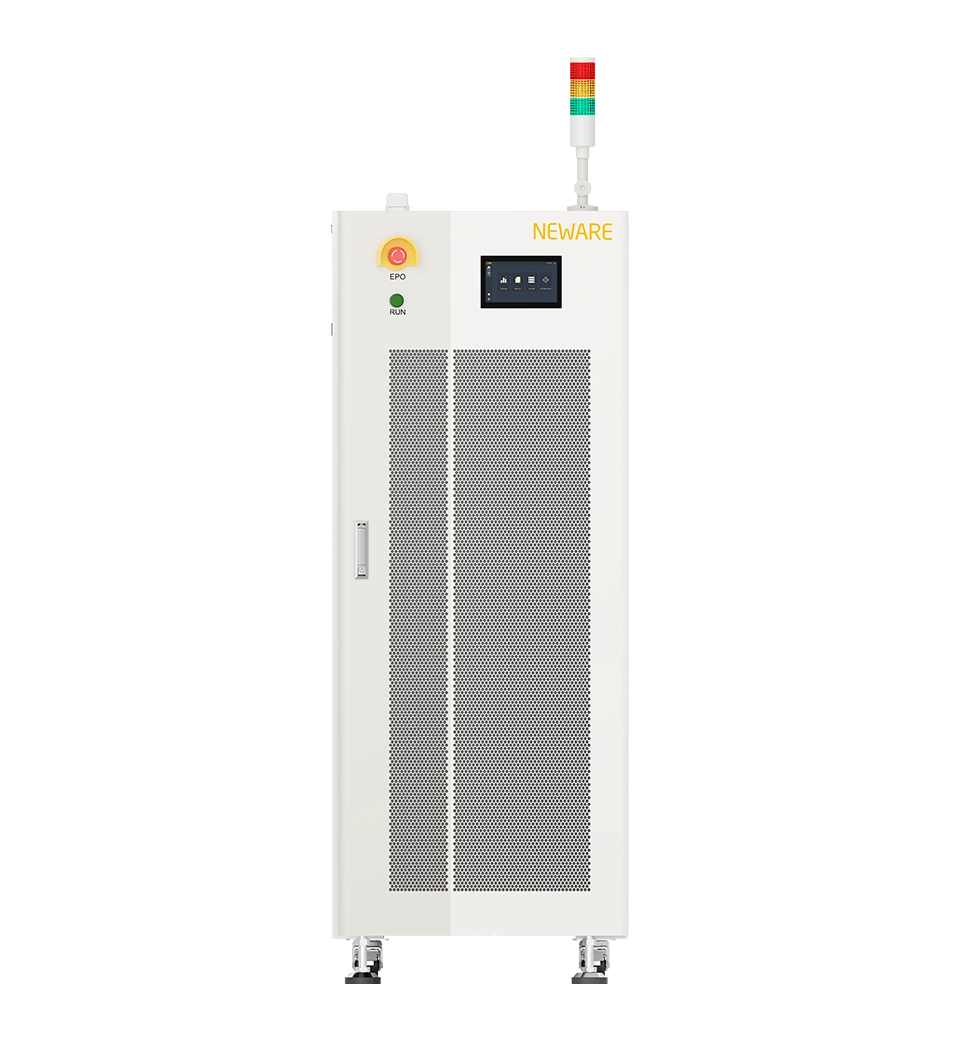

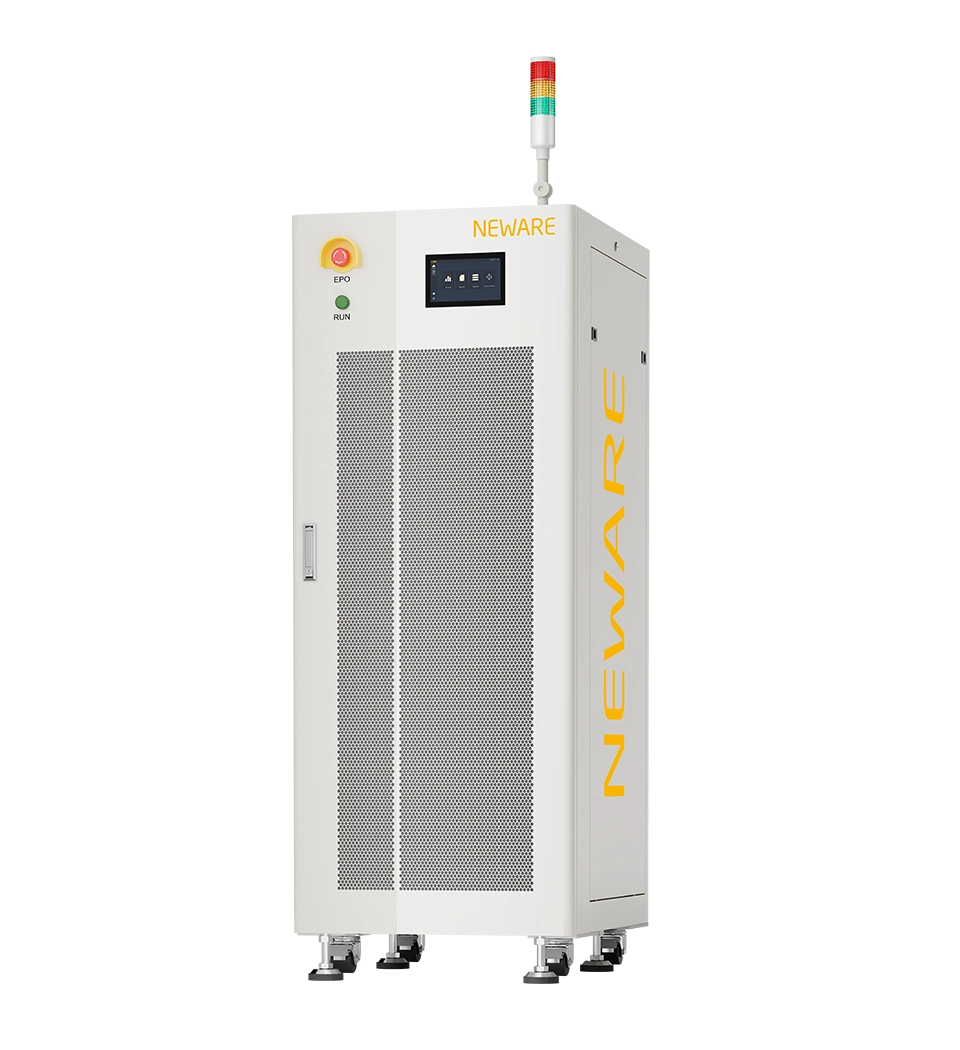

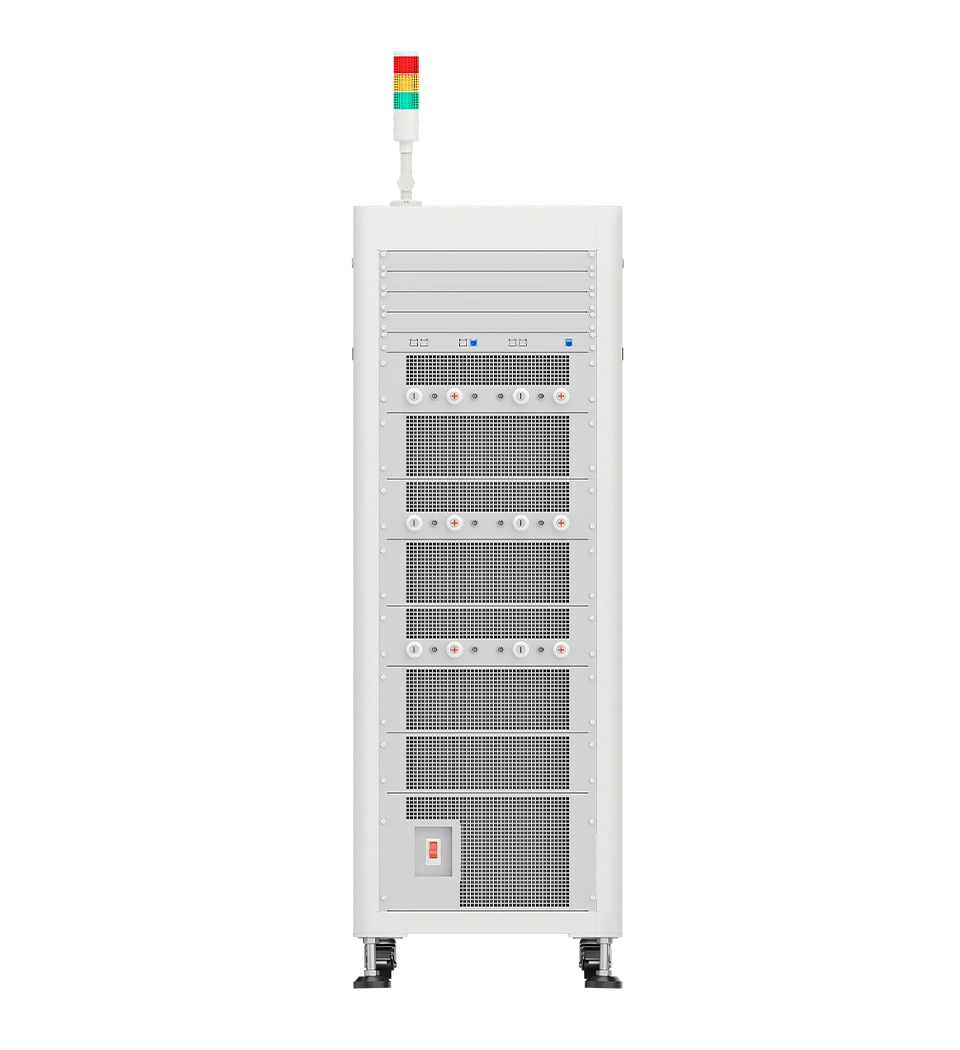

CE-6000 Module Testing System

NEWARE battery tester as battery pack, fuel cell, Electric vehicle battery, Electric car battery, Power cell, Battery Module, Provide efficient and accurate testing, such as SOC,DOO,PCIR test.

● Current Accuracy：±0.05% F.S.

● Voltage Accuracy：±0.02% F.S.

● Recording Frequency：100Hz

● Current Conversion Time：≤6ms

● Current Response Time：≤3ms

● Minimum Pulse Width：100ms

● Feedback Efficiency (Max) ：90%

Born for high-power-density Battery Module Testing.

Voltage	Current
20V≤V≤60V	60A	120A	240A	480A	960A	1200A	-
60V<V≤120V	50A	100A	200A	400A	600A	800A	1000A
120V<V≤200V	50A	100A	200A	300A	400A	500A	-

*Other models can be customized according to voltage and current requirements.

CE-6000 Pack Testing System NEWARE Battery Testing Solutions

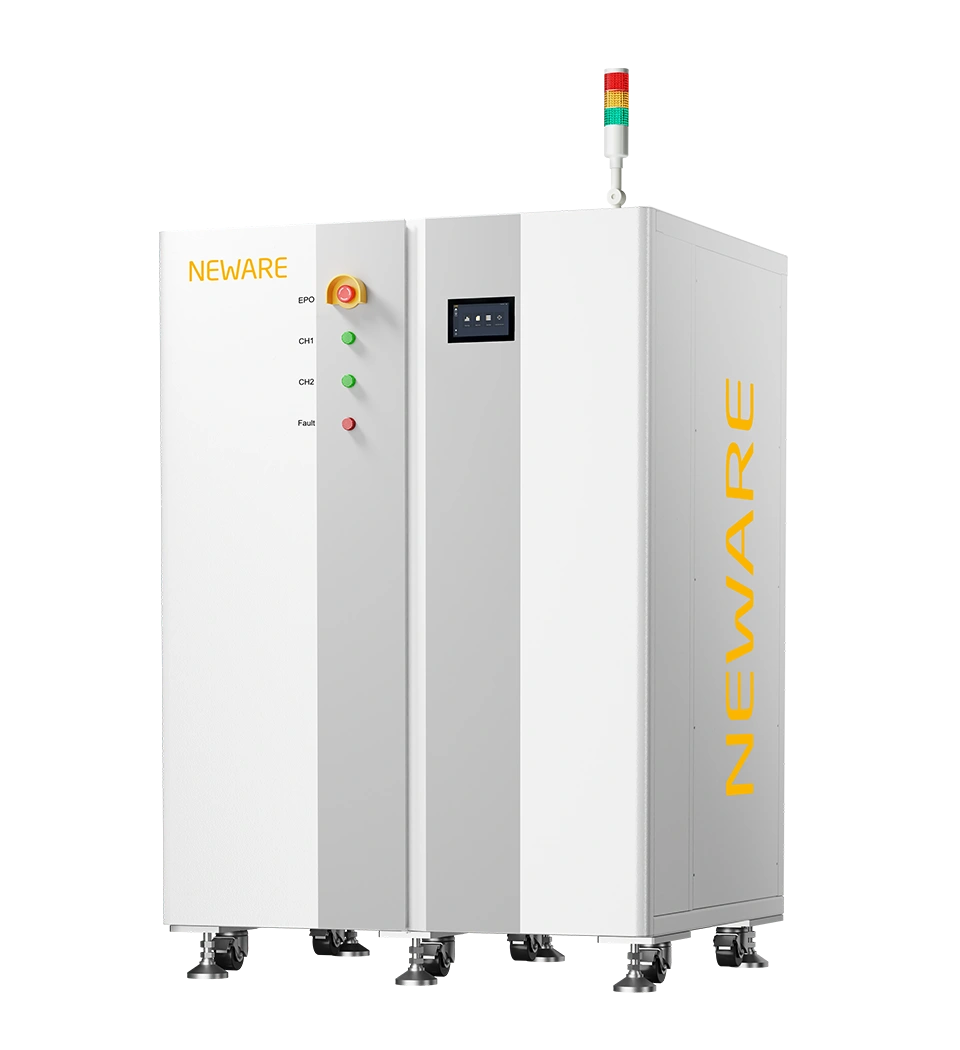

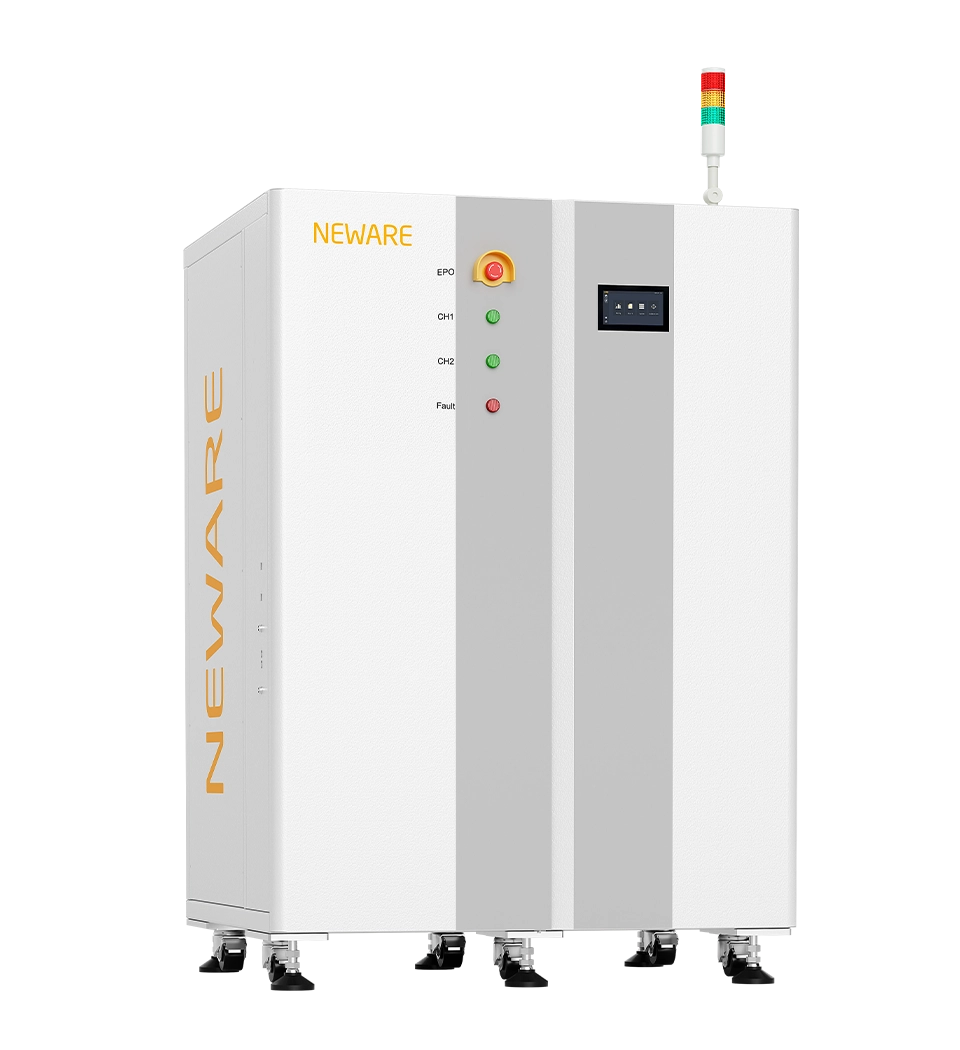

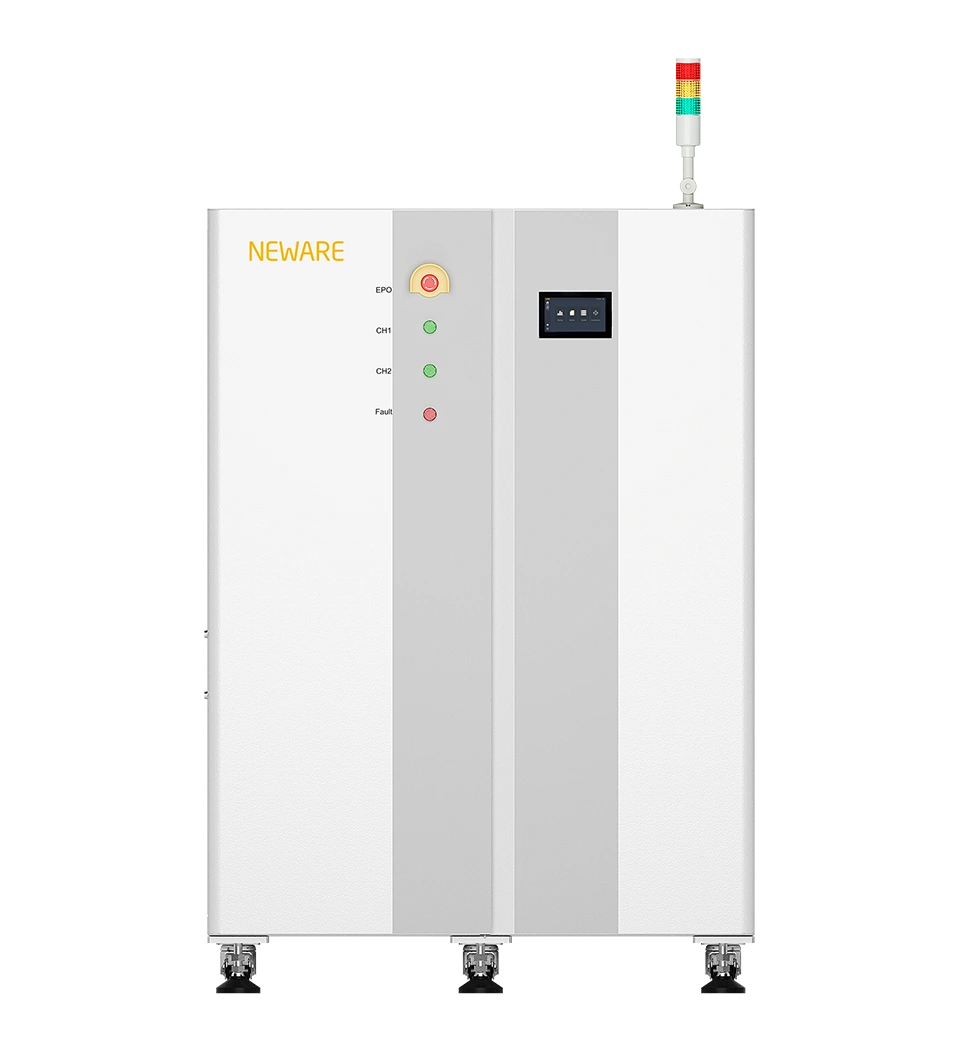

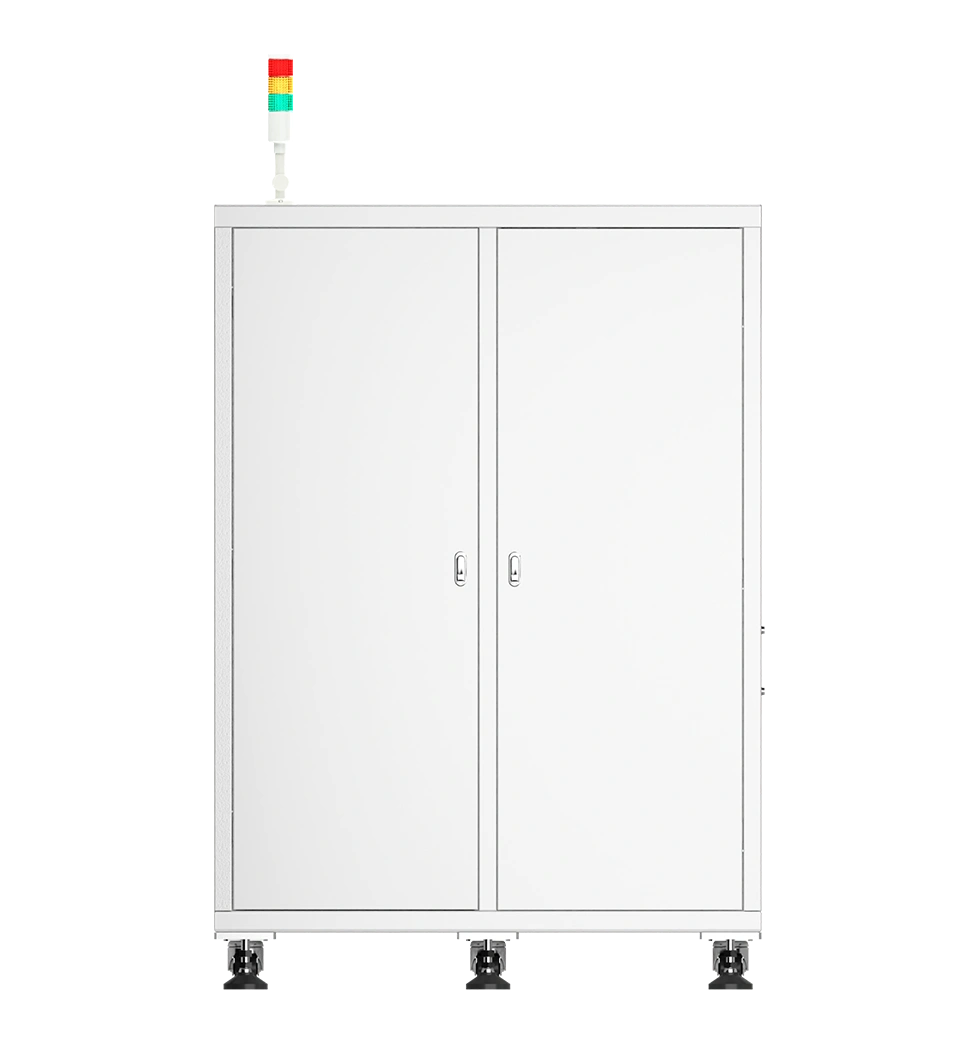

CE-6000 Pack Testing System

NEWARE battery tester for EV battery, solar panel battery,pack battery, and power cells. Perform SOC, DOO, and DCIR tests on electric car batteries and more.

● Voltage Accuracy：±0.02% F.S.

● Current Accuracy：±0.05% F.S.

● Recording Frequency：100Hz

● Current Conversion Time：≤10ms

● Current Response Time：≤5ms

● Minimum Pulse Width：100ms

● Feedback Efficiency (Max) ：94%

Born for high power & voltage Battery Pack Testing.

Power	Voltage	Current
100kW	500V	200A
150kW	750V	200A
300kW	1000V	300A

*Other models can be customized according to voltage, current and power requirements (200V ~ 1000V、100A ~ 1000A).

Powerful programmability.
Meet diverse testing needs.

Comprehensive equipment functionality, compatible with both charging and discharging, and adaptable to various BMS systems.

DBC configuration

CC & CV charge/discharge test

20ms pulse width

Driving simulation

Communication can be achieved by editing the DBC protocol files corresponding to different protocols of batteries.

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

Testing the performance of the battery under fast changes in current/power.

Supports up to 1 million lines of changing data.
