CT/CE-9000 Series

CT-9000-5V5A NEWARE Battery Testing Solutions

CT-9000-5V5A

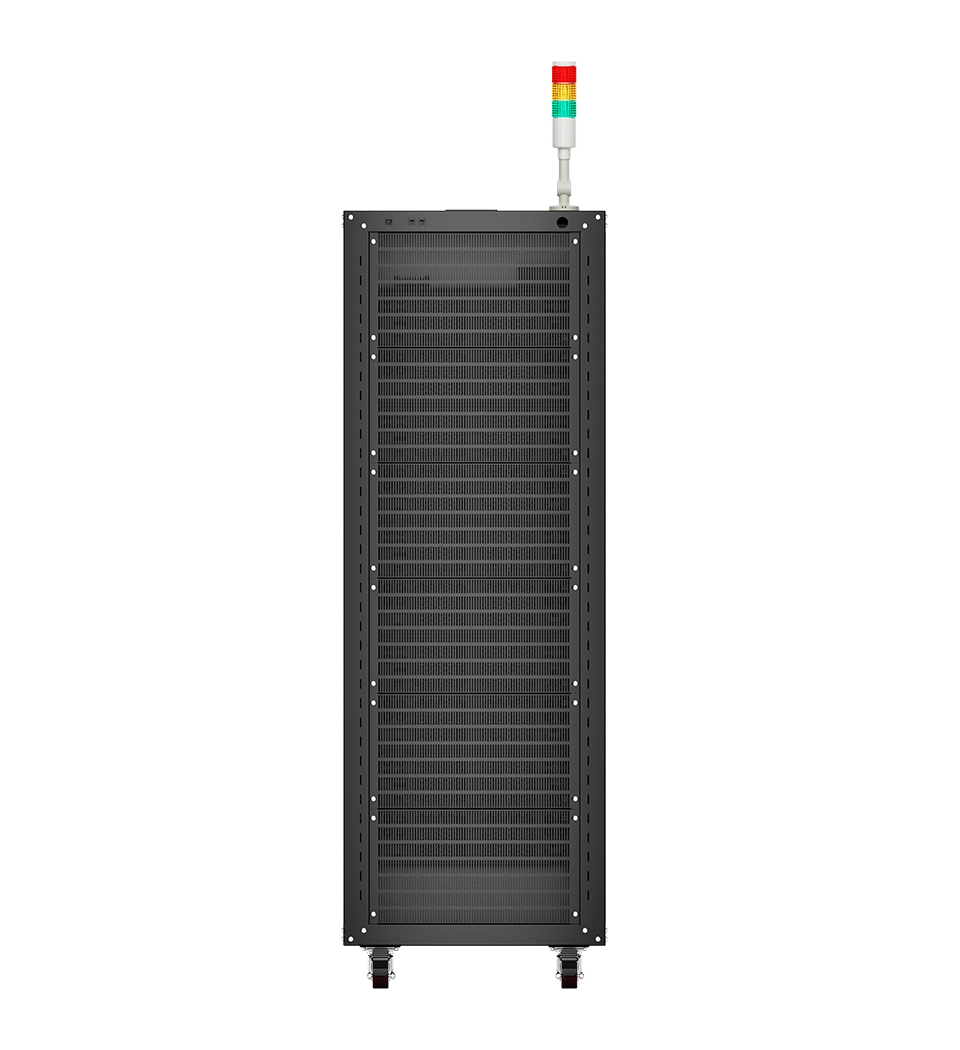

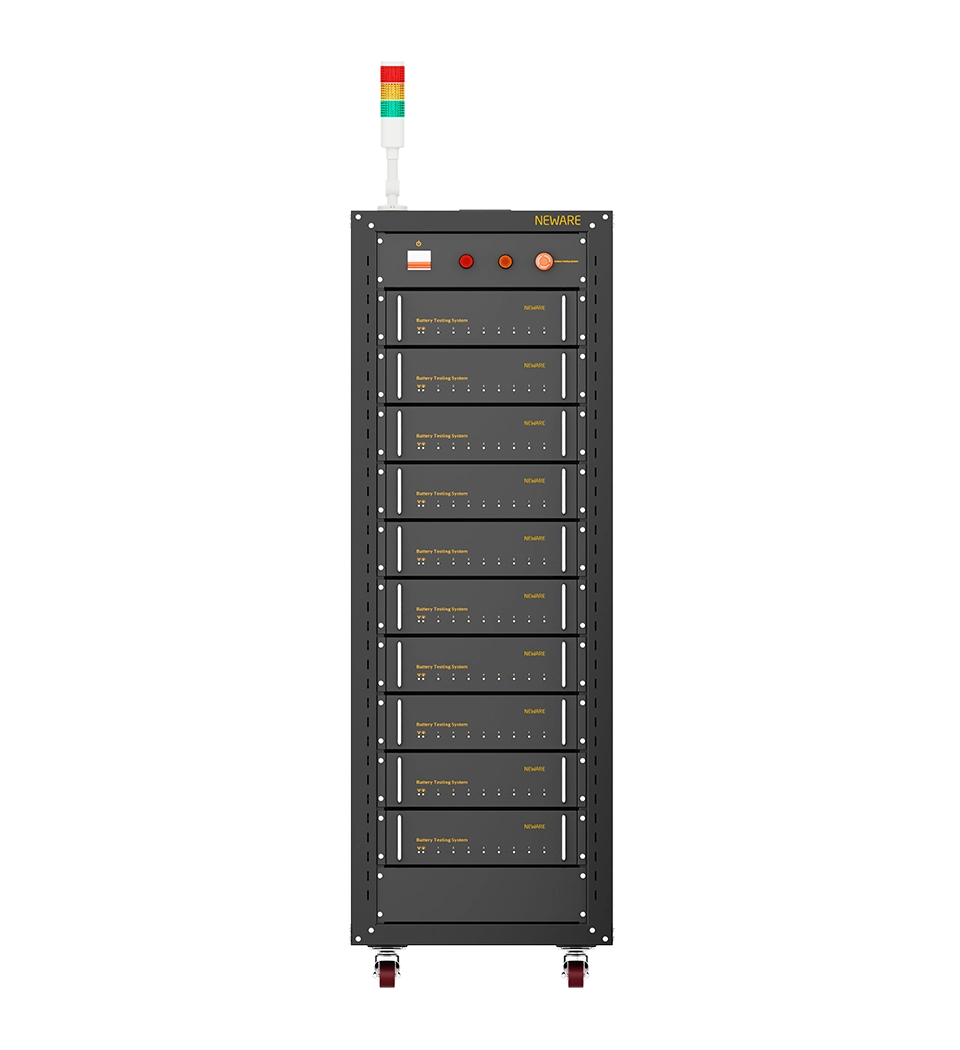

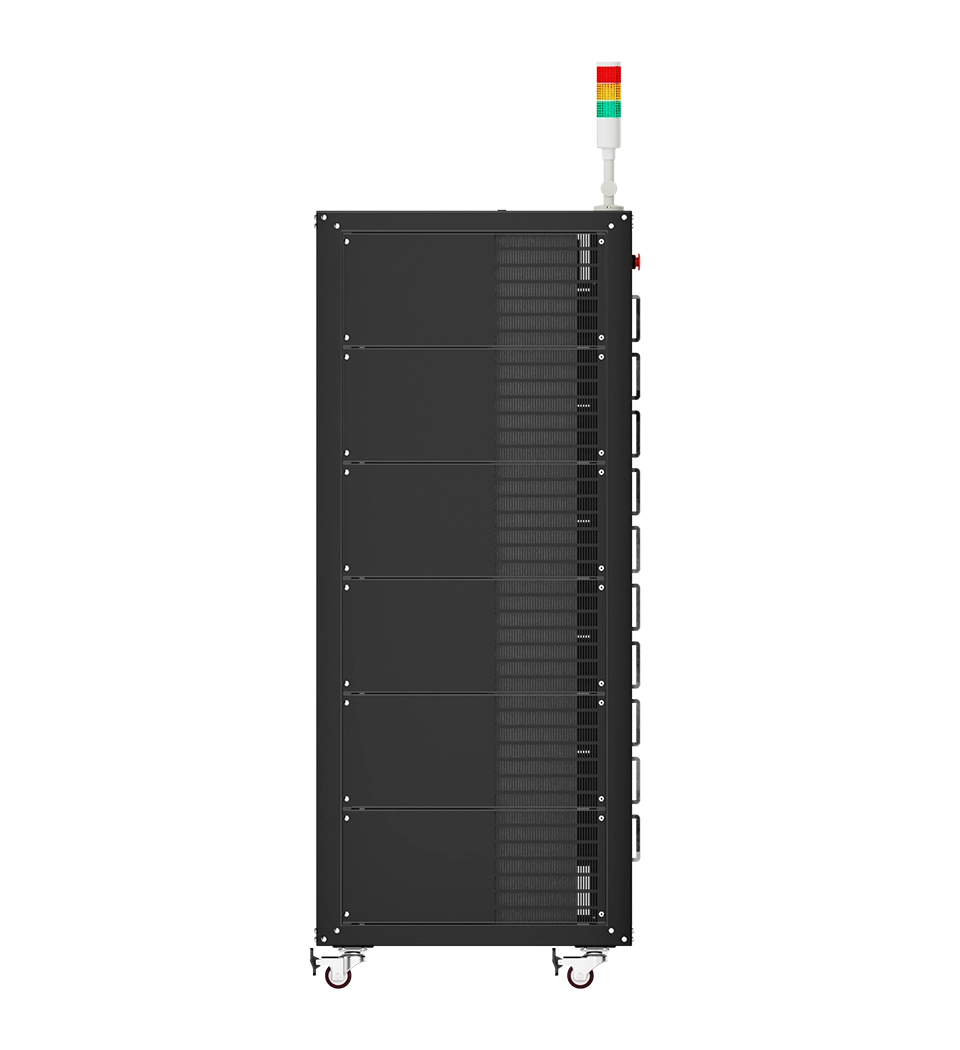

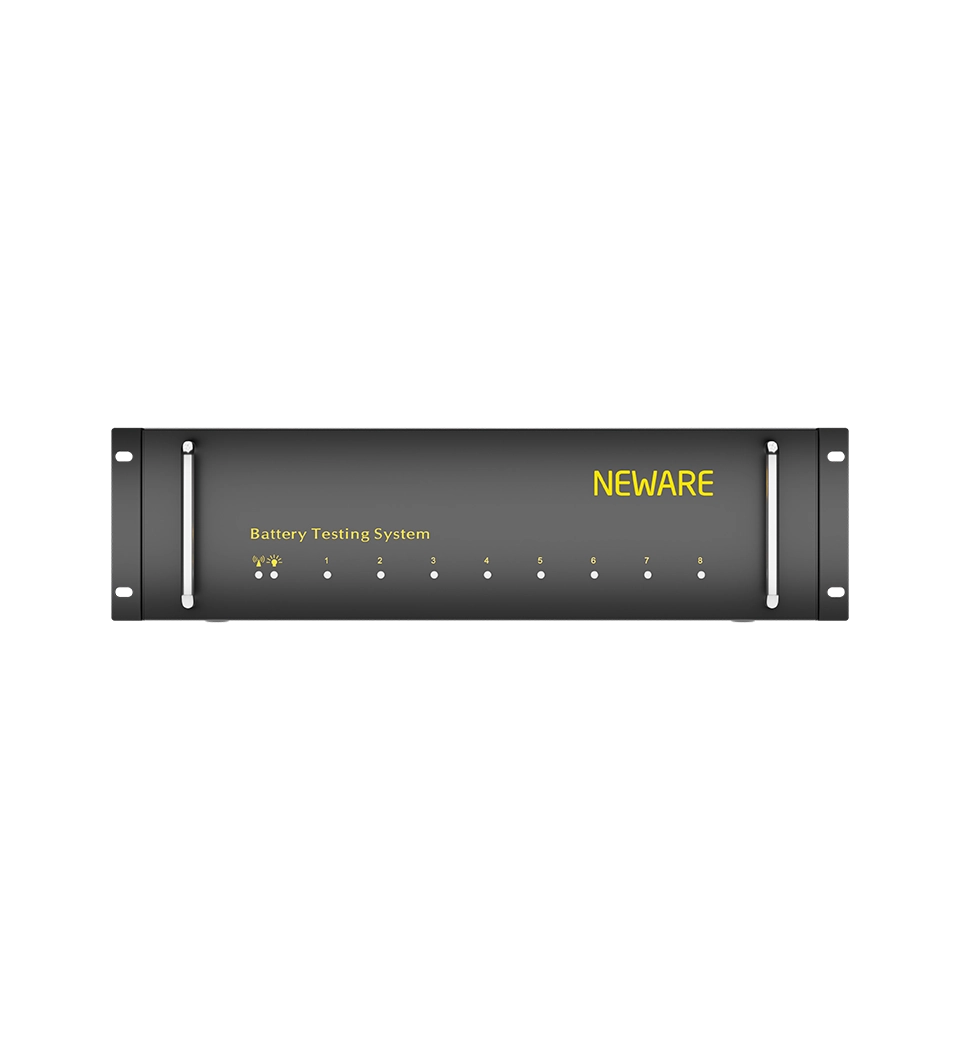

CT-9000 Battery Testing System

NEWARE battery tester-CT-9000-5V5A，battery test: Button Battery，18650 rechargeable battery,Laptop battery,Cell phone battery,with GITT and HPPC.Battery Testing

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：1000Hz

● Resolution AD：16bit

● Current Response Time：≤100μs

● Minimum Pulse Width：400μs

● Off-Line Test：1GB

4 ranges, wide dynamic range, high speed sampling and high accuracy.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V6A	0.1μA ~ 180μA	180μA ~ 6mA	6mA ~ 180mA	180mA ~ 6A
5V12A	0.12mA ~ 12mA	12mA ~ 120mA	120mA ~ 1200mA	1200mA ~ 12A
5V15A	0.15mA ~ 15mA	15mA ~ 150mA	150mA ~ 1500mA	1500mA ~ 15A

*Other models can be customized according to voltage and current requirements.

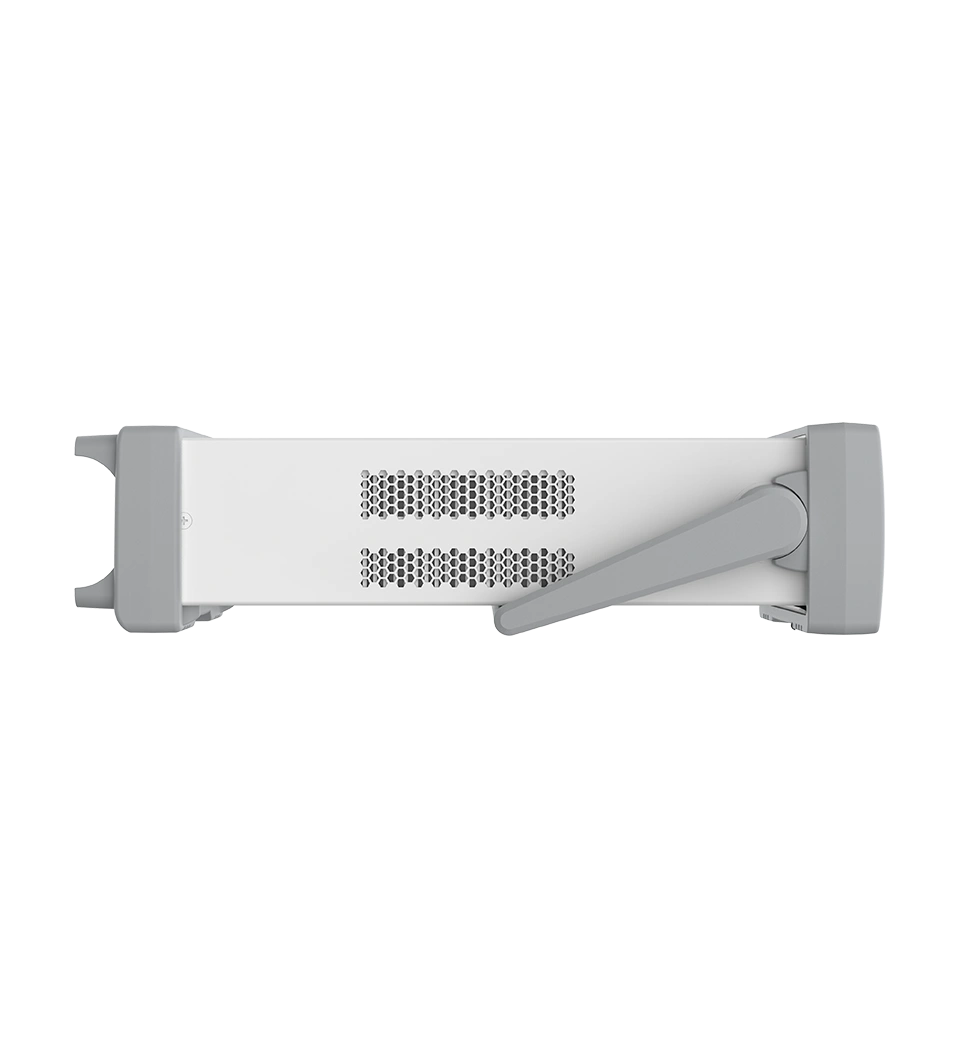

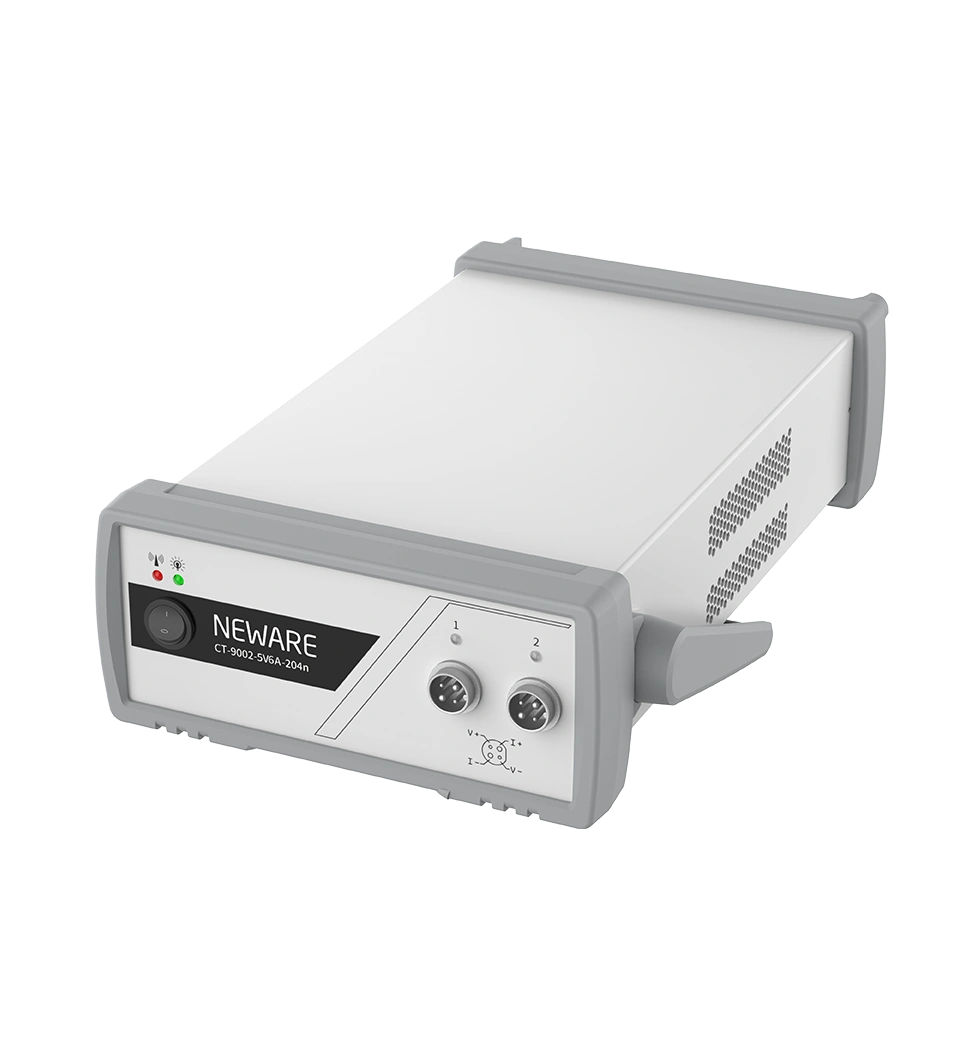

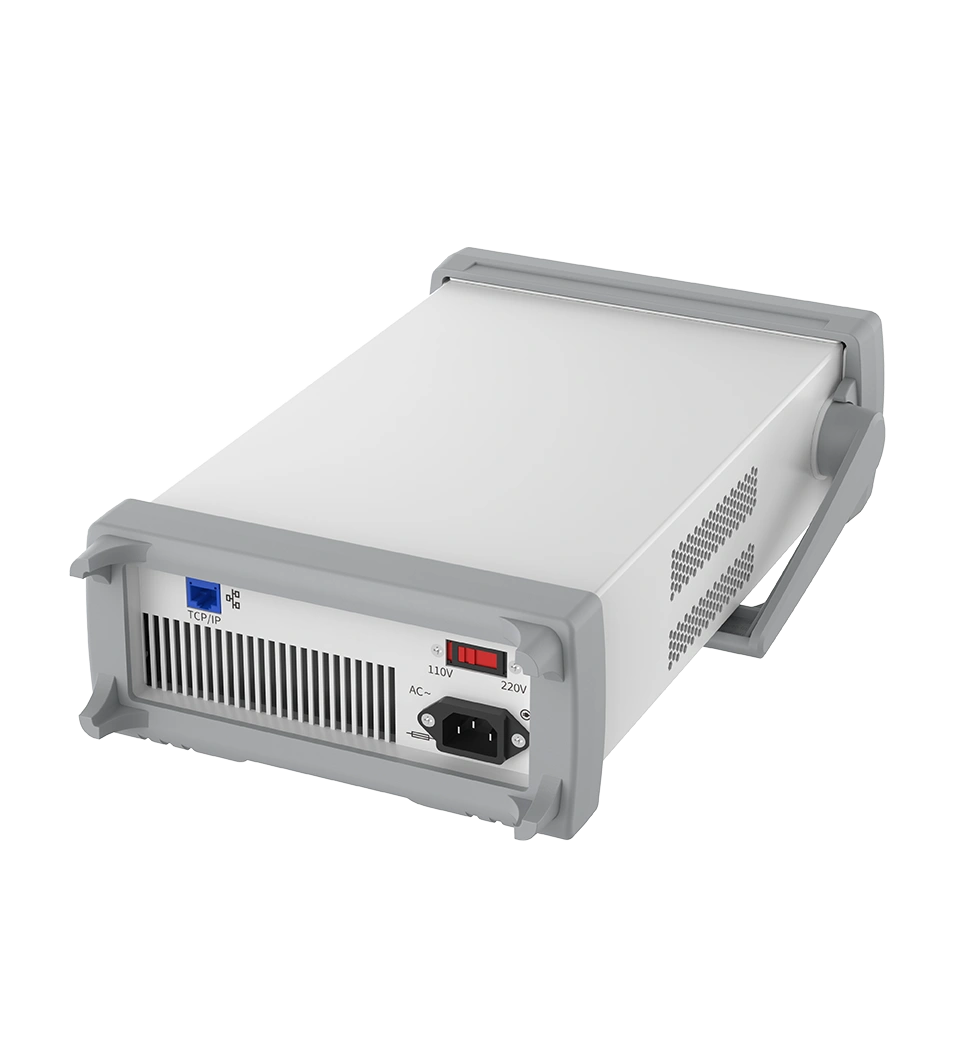

CT-9002-5V6A-F-204n NEWARE Battery Testing Solutions

CT-9002-5V6A-F-204n

CT-9000 Battery Testing System

NEWARE battery tester CT-9002-5V6A-F-204n for testing button batteries and pouch batteries. 4 ranges from 0.2 μA to 100 mA.Portable with 2 channels. IncludingHPPC and GITT tests.

● Voltage & Current Accuracy：±0.02% F.S.

● Voltage & Current Stability：±0.01% F.S.

● Recording Frequency：1000Hz

● Resolution AD：16bit

● Current Response Time：≤100μs

● Off-Line Test： 1GB

4 ranges, wide dynamic range, high speed sampling and high accuracy.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V6A	0.1μA ~ 180μA	180μA ~ 6mA	6mA ~ 180mA	180mA ~ 6A

*Other models can be customized according to voltage and current requirements.

A multitude of functionalities.
Accomplishing the testing of new species.

Pulse simulation test

Cycle life test

Rate Charging / Discharging Test

DCIR test

dQ/dV differential capacity curve

Support Differential Capacity Curve Test, designed for battery research in Universities, Research Institutes and etc.

Powerful programmability.
Meet diverse testing needs.

The equipment has comprehensive functions, supports SMBus communication, and easily meets various needs.

400μs pulse width

Simulation

Discharge to 0V *

Conditions switches

The pulse test supports the setting of a minimum pulse width of 400μs, which can be used to check the performance of the battery pack under rapidly changing current and power.

Simulation test support. Simulate the actual battery pack testing environment to verify the battery pack performance under real using. It supports loading maximum 100W rows of changing data.

Forced discharge of the battery pack to 0V, suitable for various safety tests, destructive tests and other tests of the battery pack.
*This function is optional.

Battery test steps need to be estimated for multiple conditions according to different operations during test applications; condition switches meet requirements for multi-exit programming types. Each step supports 5 condition switches; support multi-exits, go to any steps, achieve more flexible process control.
