CT/CE-5000 Series

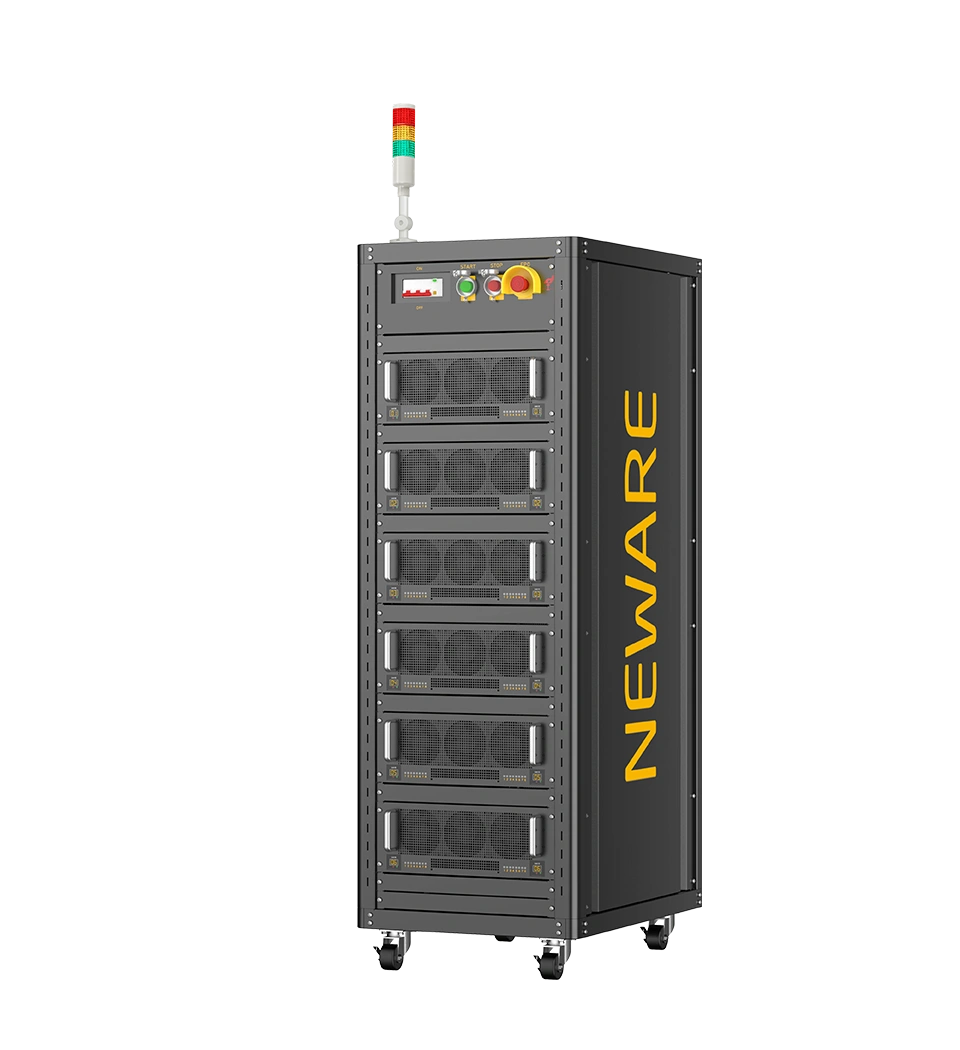

CE-5012-5V600A NEWARE Battery Testing Solutions

CE-5012-5V600A

CE-5000 Battery Testing System

NEWARE battery tester for battery test such as EVbattery, Accumulator, Solar panel battery, Laptop battery, Hoverboard battery, Electric scooter battery. 3U, GITT test, SMbus

● Voltage Accuracy：±0.02% F.S.

● Current Accuracy：±0.05% F.S.

● Resolution Ratio AD/DA：16bit

● Current Response Time：≤1ms

● Minimum Pulse Width：100ms

● Off-Line Test：1GB/CH

Applicable to power cells, energy storage cells, and other related fields.

Charge Voltage Range	0V~5V
Discharge Voltage Range	1.5V~5V
Current Range	Single Channel	75mA~600A
	Channel Parallel Connection	75A/150A/225A/300A/375A/450A/525A/600A/.../900A/...1200A/...6000A/...

*Other models can be customized according to voltage and current requirements.

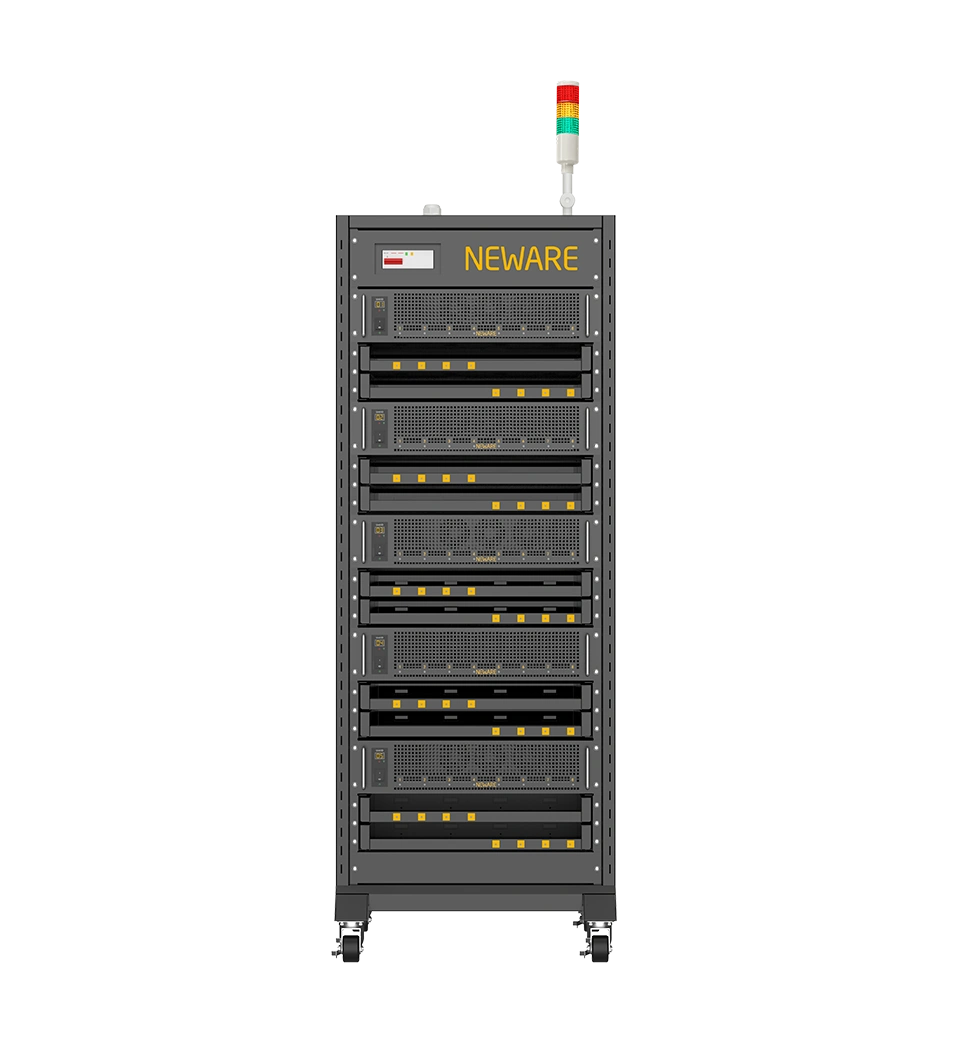

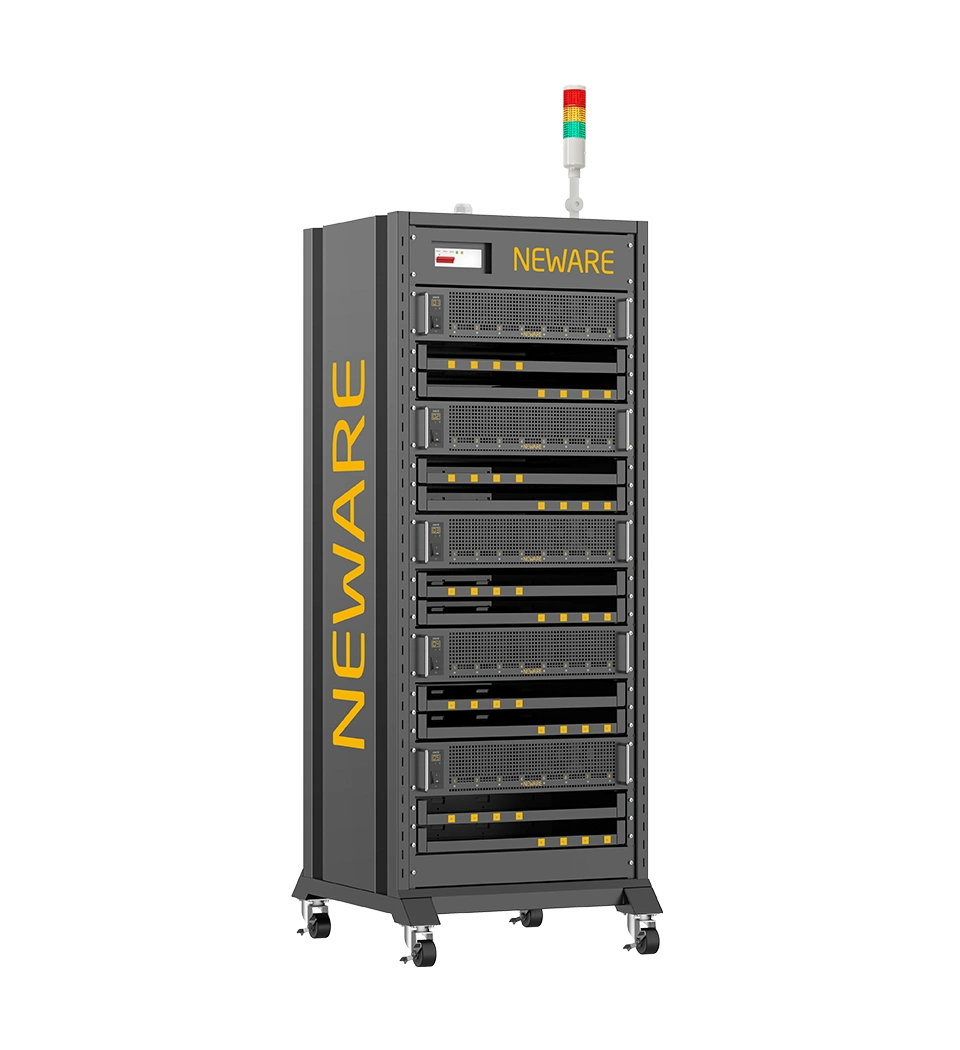

CE-5040-20V10A NEWARE Battery Testing Solutions

CE-5040-20V10A

CE-5000 Battery Testing System

NEWARE battery tester for accurate and efficient battery testing.such as:Laptop battery, flow battery, 9V rechargeable battery, Electric scooter battery. GITT, SMbus.

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：100Hz

● Resolution Ratio AD/DA：16bit

● Current Response Time：≤20ms

● Single-Cycle Operation Count：255 cycles

● Off-Line Test：1GB/CH

Integrating charge-discharge detection and temperature testing into one.

Voltage & Current	20V/10A
current measurement range (Single-channel)	10mA～10A
voltage measurement range (Single-channel)	2V~20V

*Other models can be customized according to voltage and current requirements.

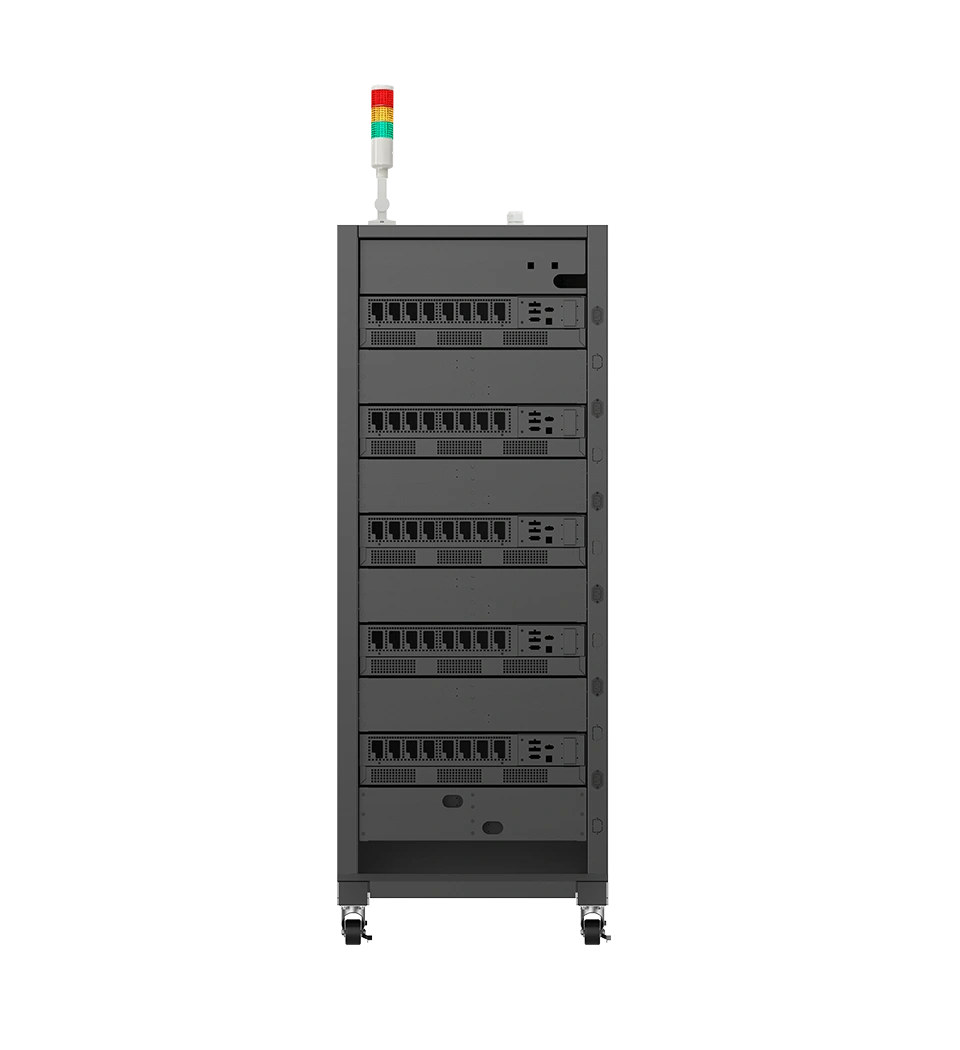

CT-5080-5V6A NEWARE Battery Testing Solutions

CT-5080-5V6A

CT-5000 Battery Testing System

NEWARE battery tester for accurate and efficient battery testing.such as：Laptop battery，flow battery，9V rechargeable battery，Electric scooter battery.GITT，SMbus

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：100Hz

● Resolution Ratio AD/DA：16bit

● Current Response Time：≤2ms

● Single-Cycle Operation Count：255 cycles

● Off-Line Test：1GB/CH

A high-precision battery testing system developed specifically for 3C products.

Voltage & Current	Range 1	Range 2	Range 3
5V6A	0A ~ 0.2A	0.2A ~ 1A	1A ~ 6A

*Other models can be customized according to voltage and current requirements.

Mastering multiplicity: Simplifying the intricate.

Cycle life test

Rate Charging / Discharging Test

Pulse simulation test

GITT Test

DCIR test

Covering multiple testing functions, customizing and editing step contents in tabular form, supporting custom variables and custom functions, conducting comprehensive testing of battery cells from various perspectives.
