CT/CE-4000 Series

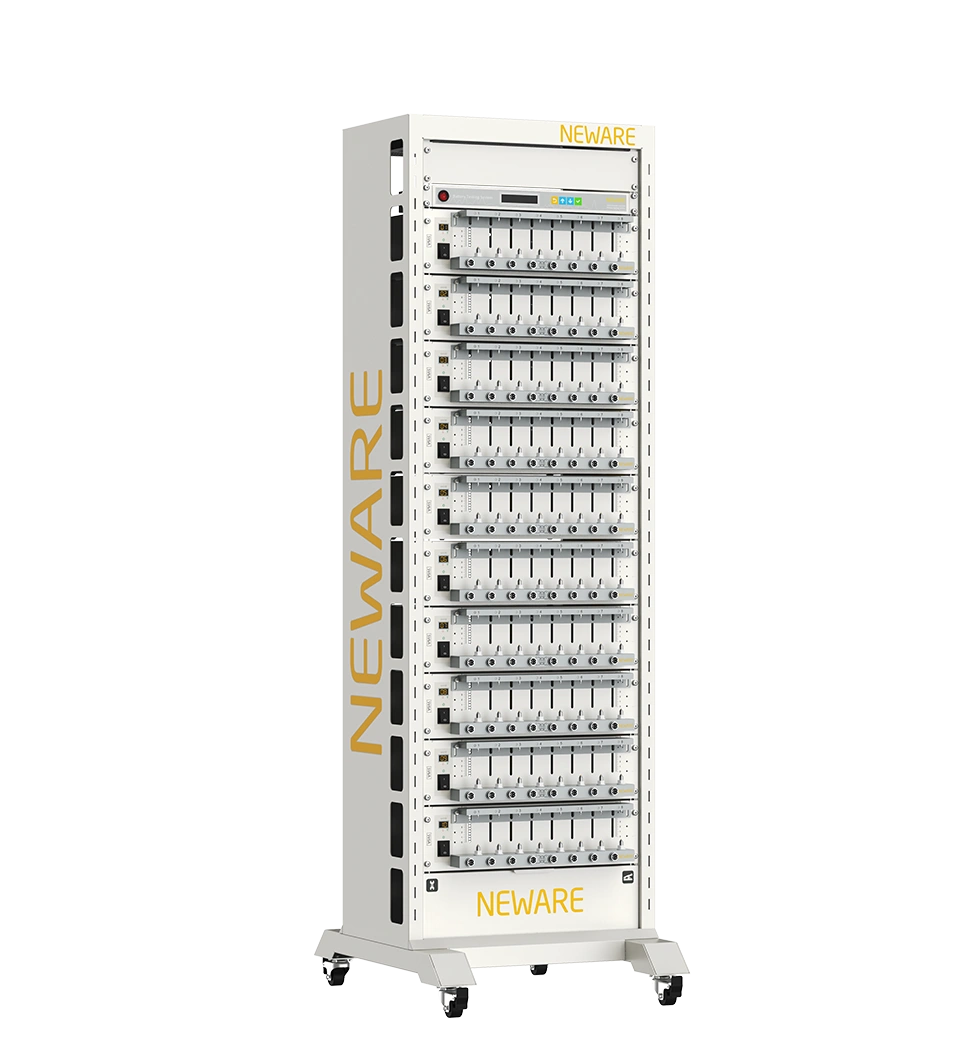

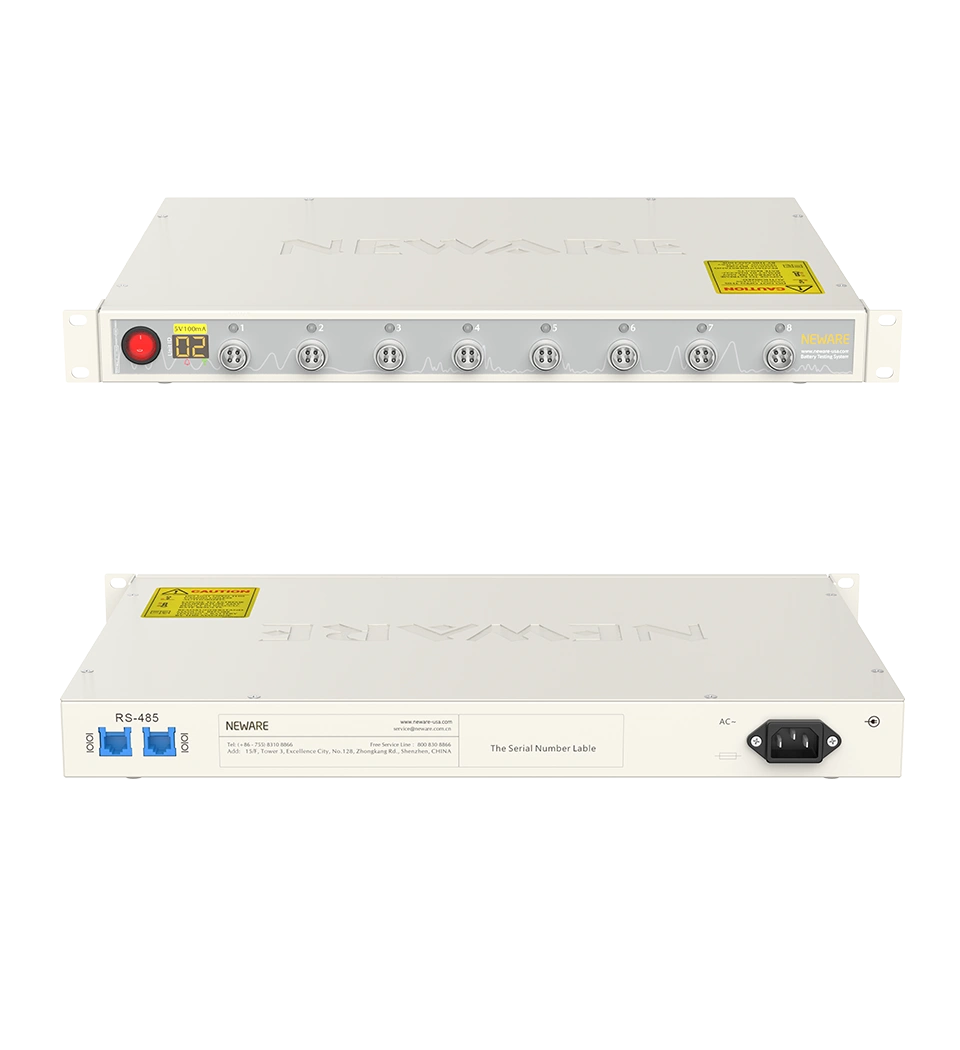

CT-4008Q-5V100mA-124 NEWARE Battery Testing Solutions

CT-4008Q-5V100mA-124

CT-4000 Battery Testing System

NEWARE CT-4000 Series Battery Testing System for accurate and efficient testing of flow batteries, super capacitors, coin cells, and more.GITT-1U-8 channels

● Voltage & Current Accuracy：±0.01% F.S.

● Recording Frequency：10Hz

● Sampling Time：100ms

● Current Response Time：≤1ms

● Minimum Pulse Width：500ms

● Off-Line Test: 1GB

For Coin Cells, Super Capacitors, Three-Electrode Systems Testing and etc.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V100mA	0.2μA ~ 0.1mA	0.1mA ~ 1mA	1mA ~ 10mA	10mA ~ 100mA

*Other models can be customized according to voltage and current requirements.

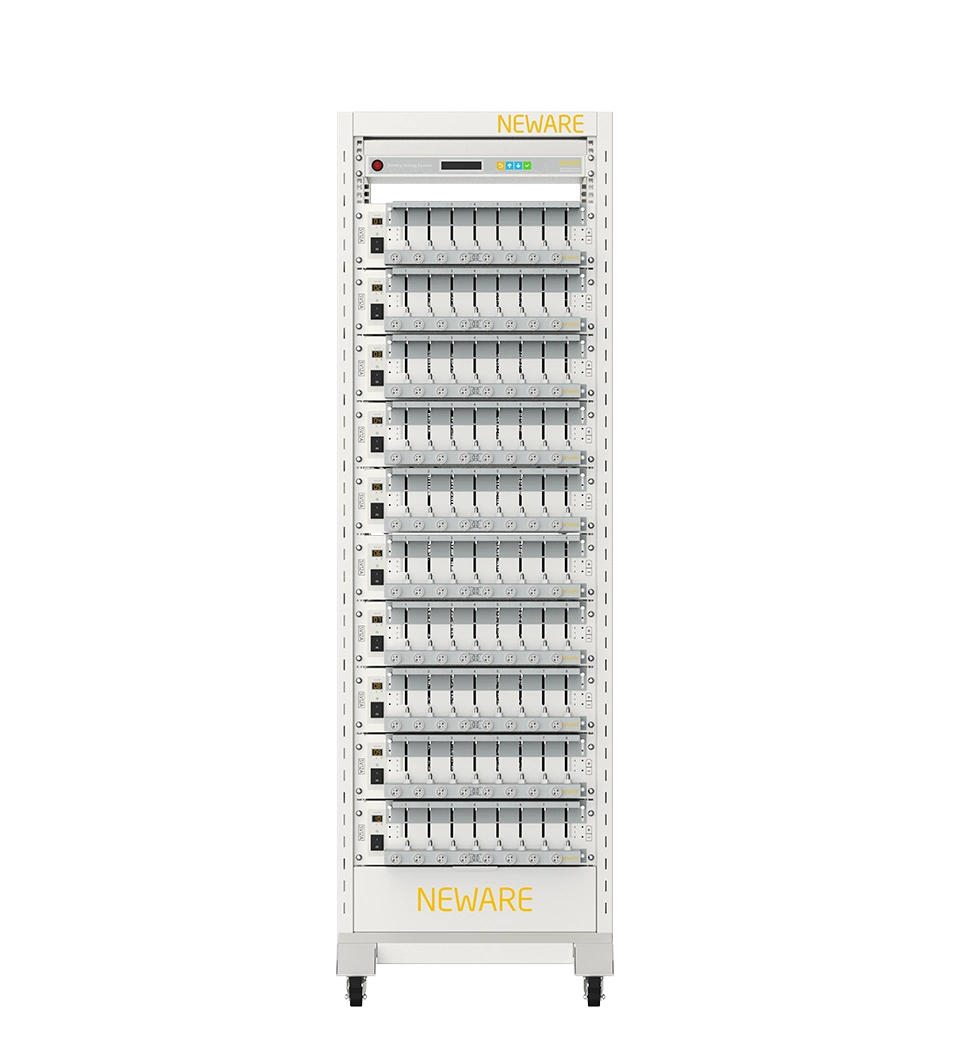

CT-4008Q-5V6A-S1 NEWARE Battery Testing Solutions

CT-4008Q-5V6A-S1

CT-4000 Battery Testing System

NEWARE battery tester, for testing 3C battery such as watch battery, camera battery, cell phone battery, GITT test, current test, data storage,flow battery,3U

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：10Hz

● Sampling Time：100ms

● Current Response Time：≤1.5ms

● Minimum Pulse Width：500ms

● Off-Line Test：1GB

Highly accurate 4-range tester, master of detail realism.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V6A	0.5mA ~ 100mA	100mA ~ 500mA	500mA ~ 3A	3A ~ 6A

*Other models can be customized according to voltage and current requirements.

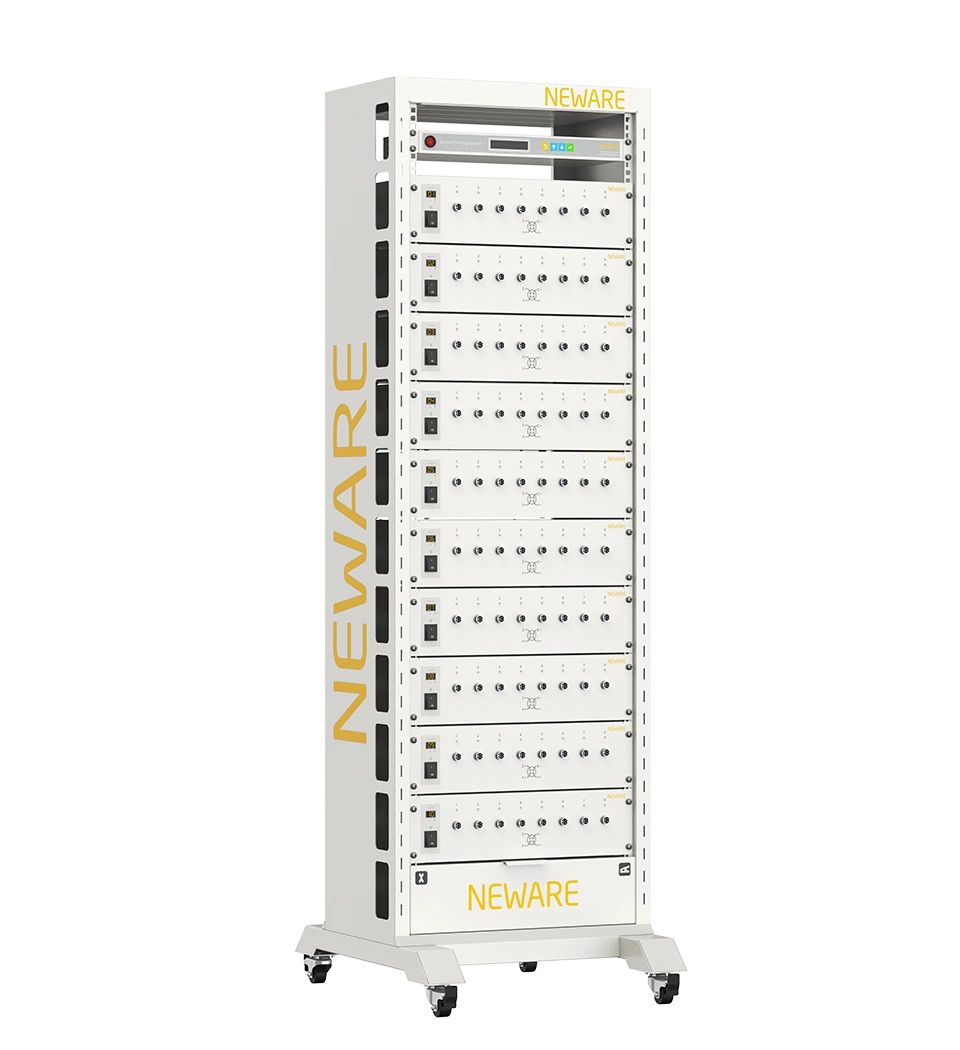

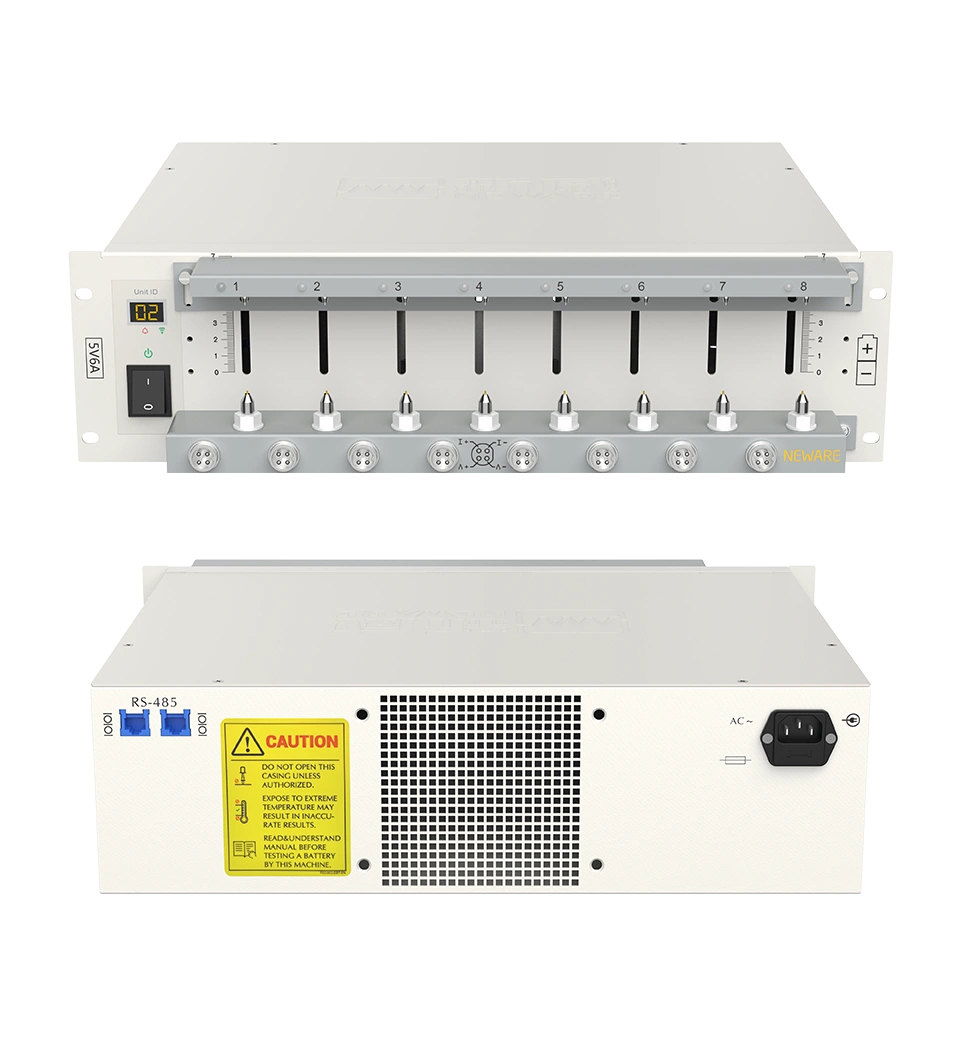

CT-4008Q-5V6A-164 NEWARE Battery Testing Solutions

CT-4008Q-5V6A-164

CT-4000 Battery Testing System

NEWARE battery tester can perform rechargeable battery, laptop battery, cell phone battery for battery test, data storage of test data, GITT test , DCIR test

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：10Hz

● Sampling Time：100ms

● Current Response Time：≤1.5ms

● Minimum Pulse Width：500ms

● Off-Line Test：1GB

Highly accurate 4-range tester, master of detail realism.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V6A	0.5mA ~ 100mA	100mA ~ 500mA	500mA ~ 3A	3A ~ 6A

*Other models can be customized according to voltage and current requirements.

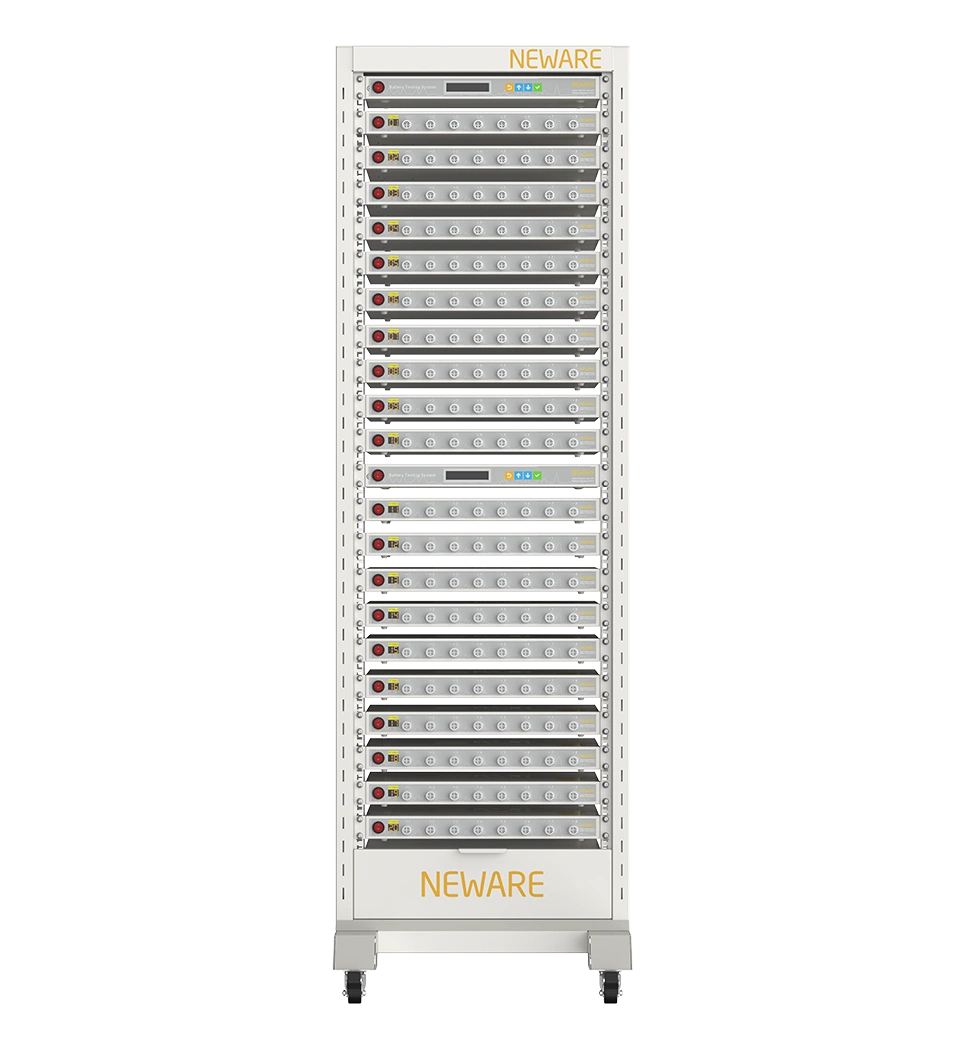

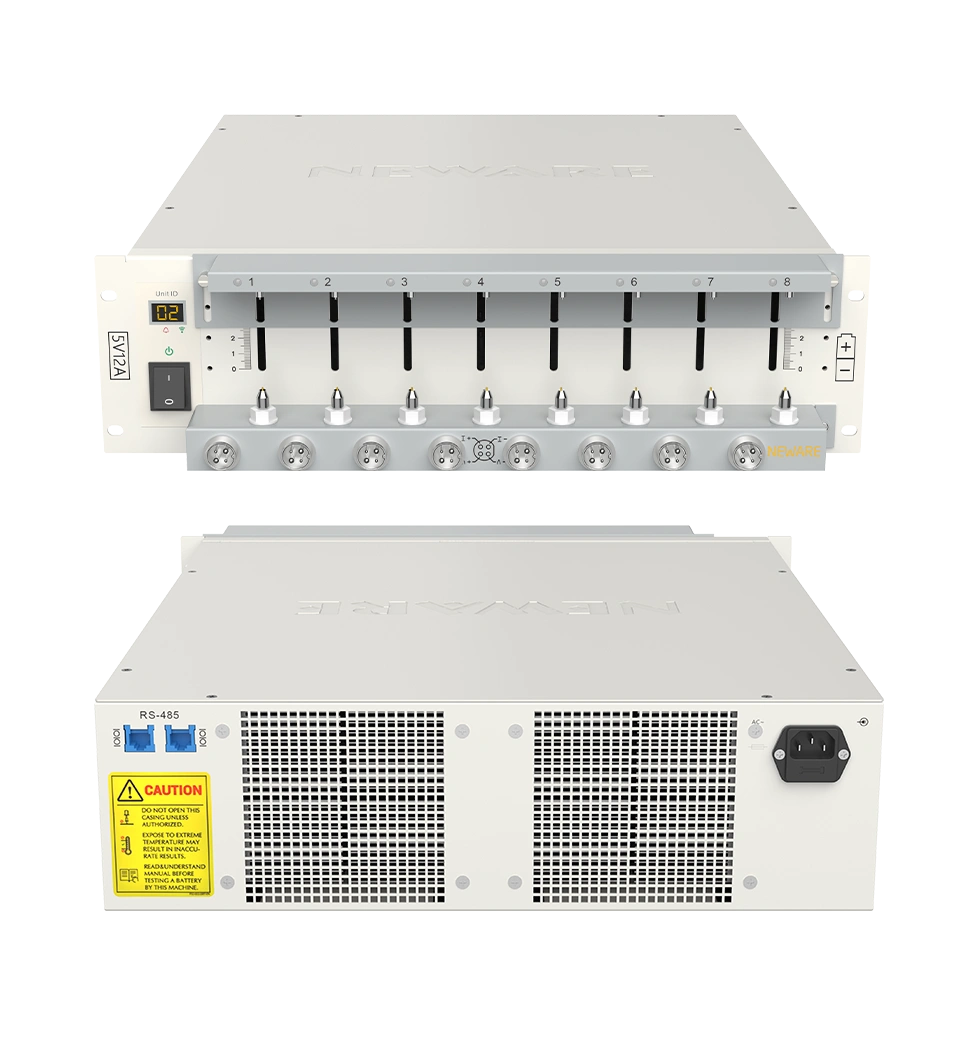

CT-4008Q-5V12A-S1 NEWARE Battery Testing Solutions

CT-4008Q-5V12A-S1

CT-4000 Battery Testing System

NEWARE battery tester, for testing 3C battery such as watch battery, camera battery, cell phone battery, GITT test, current test, data storage,flow battery,3U

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：10Hz

● Sampling Time：100ms

● Current Response Time：≤1.5ms

● Minimum Pulse Width：500ms

● Off-Line Test：1GB

Highly accurate 4-range tester, master of detail realism.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V12A	0.5mA ~ 100mA	100mA ~ 500mA	500mA ~ 6A	6A ~ 12A

*Other models can be customized according to voltage and current requirements.

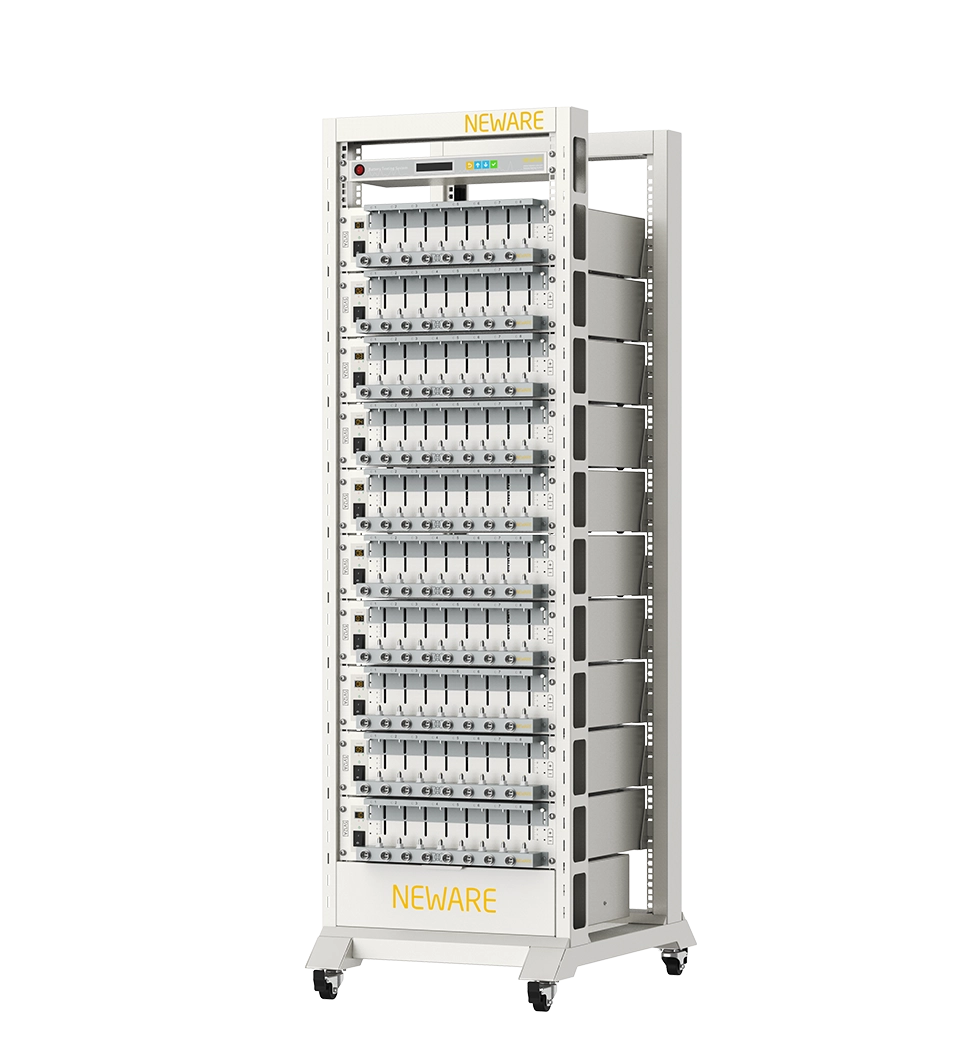

CT-4008Q-5V12A-204 NEWARE Battery Testing Solutions

CT-4008Q-5V12A-204

CT-4000 Battery Testing System

NEWARE's battery testing equipment is used for battery testing of 3C batteries.camera battery and cell phone battery also.height 3U, including GITT test and DCIR test

● Voltage & Current Accuracy：±0.02% F.S.

● Recording Frequency：10Hz

● Sampling Time：100ms

● Current Response Time：≤1.5ms

● Minimum Pulse Width：500ms

● Off-Line Test：1GB

Highly accurate 4-range tester, master of detail realism.

Voltage & Current	Range / Current
Voltage & Current	Range 1	Range 2	Range 3	Range 4
5V12A	0.5mA ~ 100mA	100mA ~ 500mA	500mA ~ 6A	6A ~ 12A

*Other models can be customized according to voltage and current requirements.

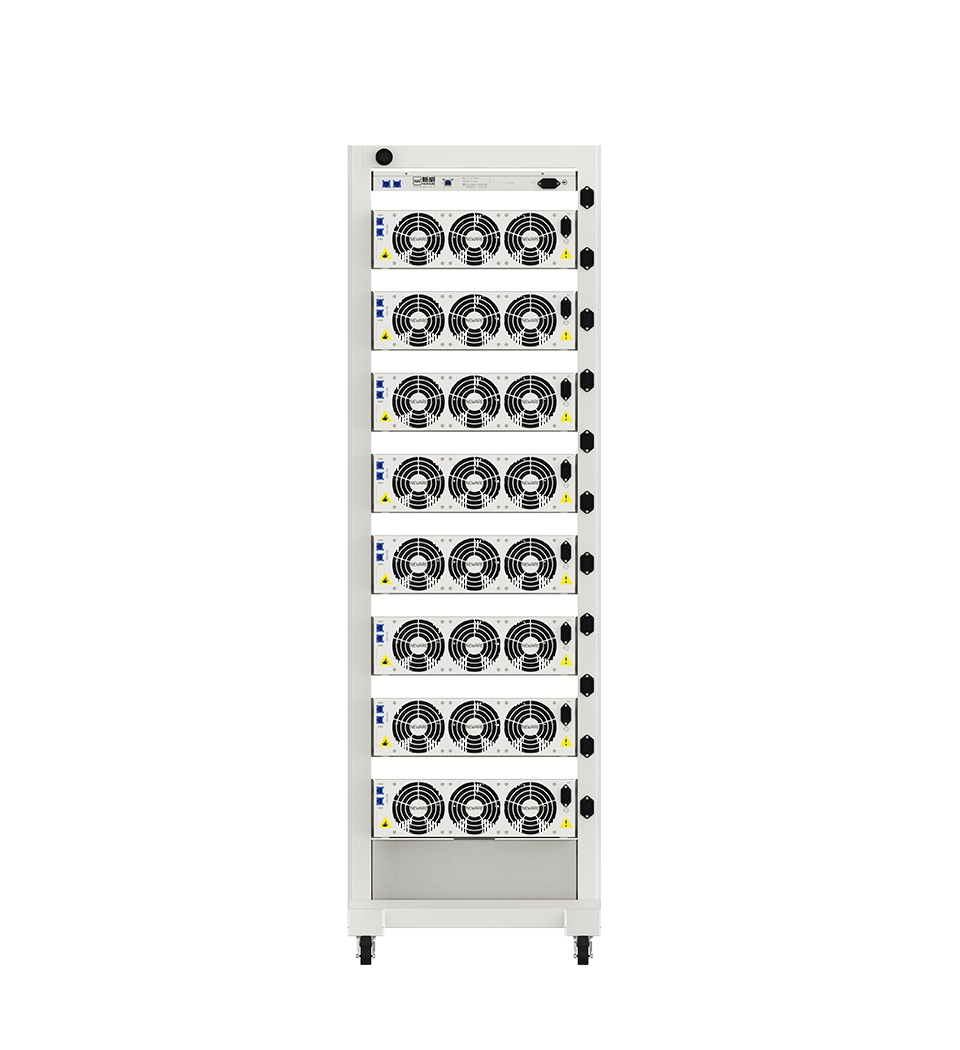

CT-4008-5V20A-A NEWARE Battery Testing Solutions

CT-4008-5V20A-A

CT-4000 Battery Testing System

NEWARE battery tester, for testing 3C battery such as watch battery, camera battery, cell phone battery, GITT test, current test, data storage,flow battery,3U

● Voltage & Current Accuracy：±0.1% F.S.

● Recording Frequency：10Hz

● Sampling Time: 100ms

● Current Response Time：≤20ms

● Minimum Pulse Width：500ms

● Max Output Power/Channel：100W

High-efficiency energy recovery power cell testing system.

Voltage & Current	5V/20A
Current measurement range (Single-channel)	0.1A～20A
Voltage measurement range (Single-channel)	0.025V～5V

*Other models can be customized according to voltage and current requirements.

Multiple testing modes.
One equipment, unlimited capabilities.

Cycle Life Test

Rate Charging / Discharging Test

Pulse Simulation Test

GITT Test

DCIR Test

dQ/dV Curve

Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

Powerful programmability.
Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

CC & CV charge/discharge test

DBC Configuration

500ms pulse width

Segmented recording

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.

Testing the performance of the battery under fast changes in current/power.

Allow to set up to 3 segment recording conditions per step, including voltage, current and time.
