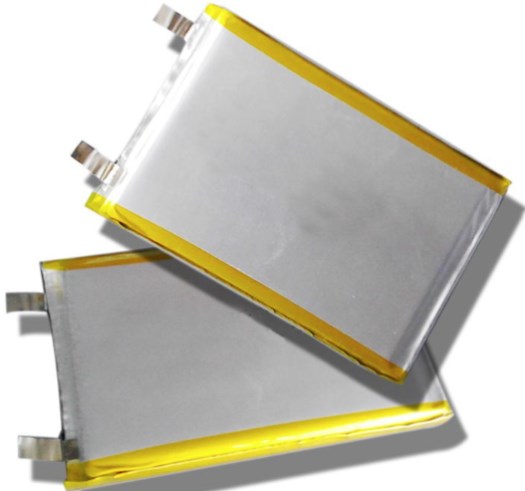

The tab arrangement of a battery refers to the arrangement of the positive and negative terminals. Typically, battery tabs are arranged in a "left positive, right negative" or "top positive, bottom negative" configuration. However, different tab arrangements can have varying impacts on the battery's performance, and the appropriate choice depends on the specific application.
1. Impact of Tab Arrangement on Internal Resistance:
In the battery, if the positive and negative terminals are far apart, resulting in increased internal resistance, power losses will rise, and the internal resistance of the battery will increase, reducing the efficiency of power transmission. Therefore, the distance between the positive and negative terminals should be minimized.
2. Impact of Tab Arrangement on Energy Density:
Battery energy density represents the amount of stored energy per unit mass or unit volume. The tab arrangement can affect the battery's energy density. Ideally, the positive and negative terminals of the battery should be close together to facilitate faster charge flow.
3. Impact of Tab Arrangement on Battery Lifespan:
The distance between the positive and negative terminals inside the battery affects electron transfer. Inappropriate electrode tab positions can lead to poor heat dissipation and imbalance, directly impacting the battery's lifespan. In practical applications, different tab arrangements should be considered based on the battery's characteristics.
4. Safety: Improper tab arrangement may cause excessive internal pressure in the battery, leading to leakage, combustion, or explosion, posing a threat to user safety.
5. Charging Speed: Tab arrangement also affects the charging speed of the battery. If the positive and negative terminals are not arranged optimally, it can increase internal resistance, restricting the flow of current, thereby affecting the battery's charging speed.
6. Battery Capacity: Tab arrangement can also influence the battery's capacity. If the distance between the positive and negative terminals is too far or the position is inappropriate, it can increase contact resistance, affecting charge transfer and causing a reduction in battery capacity.
In conclusion, the correct tab arrangement has a significant impact on the performance and safety of a battery. Battery manufacturers need to design appropriate tab arrangement schemes based on the specific battery type and application scenario.
